Charmhigh 12 Heads SMT Pick And Place Machine , High Speed Pick And Place Machine
This is CHM-863, a high-end pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.
It is characterized by 100 feeder stacks, good compatibility with NXT electric feeders and stick feeders which could support tubular components, 12 heads capable of mounting simultaneously and changing suction nozzles automatically, three-section automatic conveyor belt, high speed motion control system and vision technology applied to take photos of moving components independently researched and developed by Charmhigh itself.
Besides, the ground platform and core accessories of CHM-863 are selected from well-known international brands.
And it possesses the capability to mount components as small as 0201.
Demo Video
https://youtu.be/1rNTcamqJJw CHM-863 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
Features
1. Model number: CHM-863
2. Brand: charmhigh
3. main configuration: vertical type + automatic pwb delivery + 12 heads 100 feeders + panasonic engine servo + automatic nozzle changer + 15 cameras + thk grinder screw
4. Feeder: fuji electric feeder (purchase of feeders separately)
5. pwb area (3 options): 450*350mm / 1200*350mm
6. comes with keyboard&mouse with windows system
7. Component: 0201, 0402-5050, sop, qfn, tqfp, bga... etc.
8.1600 (l) * 1430 (w) * 1530 (h) mm, AC380v (50/60hz, trifasic)
9. deadline: 3-5 working days
10. delivery: by air/by sea/pick up from our factory directly/send to the china warehouse
11. Payment method: bank transfer (t/t)
12. Packaging: plywood box (net weight: 1620kg); g.w 2000kg)
| CHM-863 Specifications |
| Dimensions | 1600mm(L)×1430mm(W)×1530mm(H) |
| Weight | 1620kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 12 |
| Mounting Speed | 43000cph (optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support(electric lift) |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws) |
| Feeding System | 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×12 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 (digital camera) |
The Details
The Up-looking cameras component size is applicable
Feeding System:100NXT 8mm standard feeder stacks(also suitable for IC tray and stick feeder)

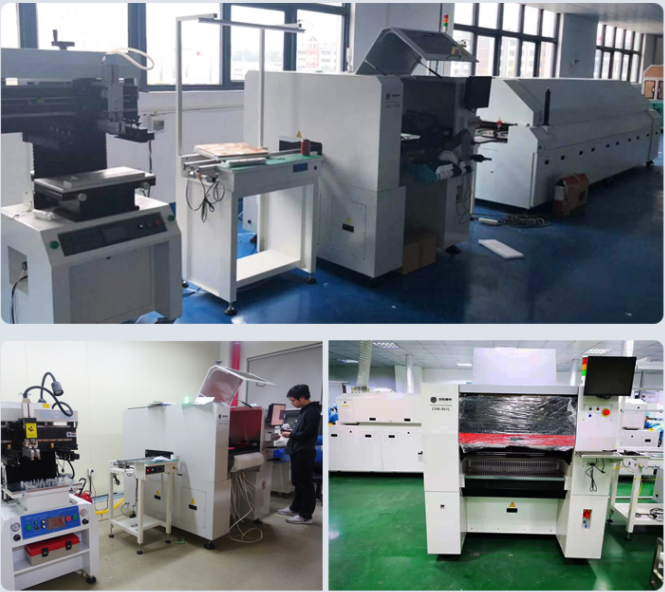

Our service
he machine has a warranty period of 1.5 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
