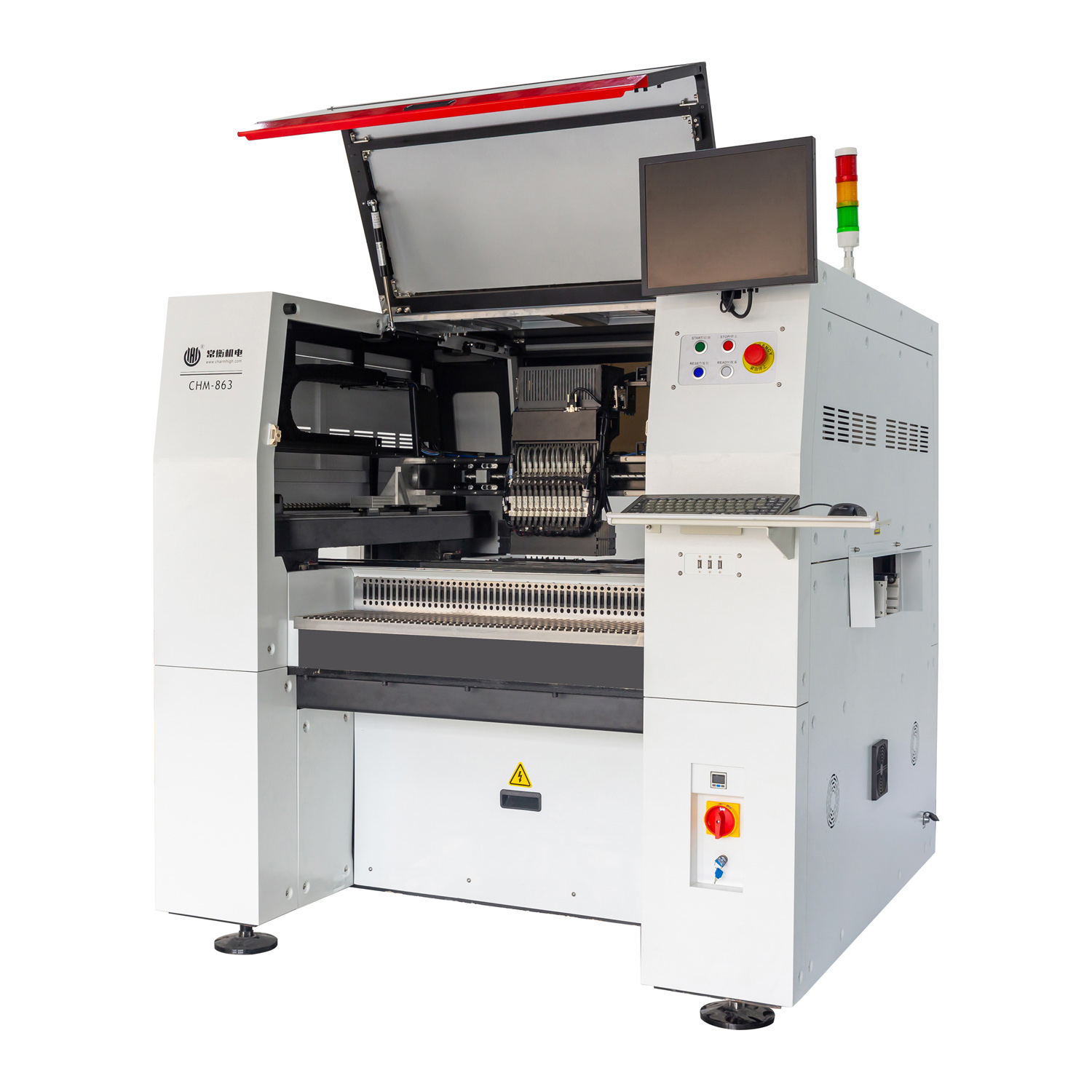

12 Mounting Heads High Speed Automatical Vertical SMT Pick And Place Machine CHM-863
SMT PICK AND PLACE MACHINE CHM-863 SPECIFICATIONS :
| CHM-863 Specifications |
| Dimensions | 1600mm(L)×1430mm(W)×1530mm(H) |
| Weight | 1620kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 12 |
| Mounting Speed | 43000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W)(standard); 600mm(L)×350mm(W) (optional) 1200mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support(electric lift) |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 10) equipped with monitor, keyboard, and mouse |
| Drive System | X&Yaxisdriven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Yaxis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws) |
| Feeding System | 100 NXT standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×12 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 (digital camera) |
zhCHM-863 Vertical SMT Pick and Place Machine
【 Basic parameters】
Dimensions: 1600 (L) × 1430 (W) × 1530 (H)
Net weight: 1600kg
Power supply: AC380V (50/60Hz, three phase)
Power: 4.5kw
PCB thickness: 0.6-3.5mm
【 Functional configuration】
Heads:12pcs
Feeder quantity: 100pcs tape feeder supported (based on 8mm)
Feeder type: Fuji NXT electric feeder
PCB delivery: 3 pieces auto delivery with rails
Support for PCB: Yes
Motor: Panasonic servo motor
Transmission: THK screw and guide rail
Auto nozzle change: support (37 position in nozzle library)
Vacuum: built-in vacuum pump
Computer: Build-in IPC (Windows)
Auto programming optimization: support
【 Vision system】
IC camera: 1pcs (40mm)
Flying camera: 12pcs (18mm)
MARK camera: 2pcs
【 Performance parameter】
Accuracy: ±50μm@μ±3σ
Speed: 43000 CPH (optimal)
Maximum component height: 12mm
PCB thickness: 0.6~3.5mm
PCB size: 450 (L)*350mm (W) / 600*350mm/ 1200*350mm (3 options)
