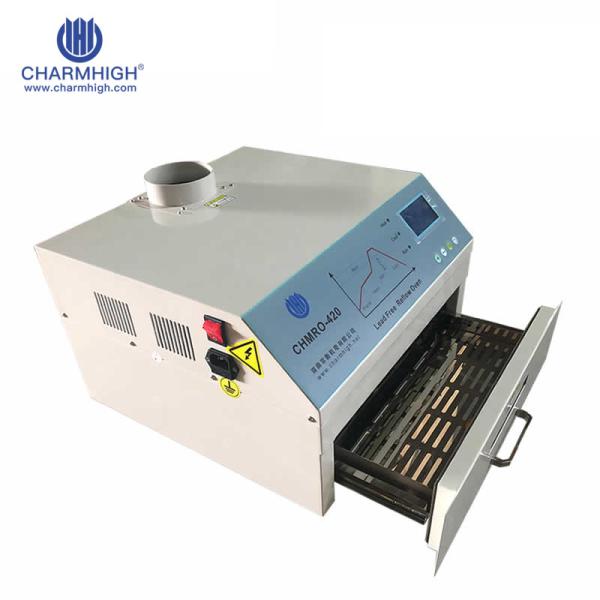

Practical Full Automatic AC220V Hot Air SMT Reflow Oven Mini
About Us
Hunan Charmhigh Electromechanical Equipment Co., Ltd is the well-known manufacturer of high-end
SMT equipment in China.
The company is located in the Changsha High-tech Development Zone,
covering a total area of 3600 square meters.
As a professional modern science and technology enterprise capable of both R&D,
production and marketing, Charmhigh has been leading the way in SMT technology
for more than ten years.
Different series of multi-head full-automatic SMT machines have been developed and
manufactured by Charmhigh to meet various practical production needs.
In accordance with the business philosophy of "Customer First, Innovation Paramount",
Charmhigh has won the hearts of thousands of customers all over the world.
| Dimensions | 420mm×405mm×265mm |
| Net Weight | 20kg |
| Rated Power | 2500W (peak power) |
| Rated Voltage | AC220V 50Hz/60Hz |
| Drawer Size | 300mm×300mm |
| Soldering Type | Lead Soldering / Lead-free Soldering |
| Maximum Soldering Temperature | 300°C |
| Heating Mode | Infrared ray & hot air |
| Temperature Control Accuracy | ±1°C (at constant temperature) |
| Soldering Cycle | 5 ~ 10 minutes |
| Saved Reflow Curve Quantity | 8 |
Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;
8 reflow profile is optional, flexible production;
Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves and visually displayed;
Built-in PID controllers, high precision temperature control;
Drawer window design, commissioning and easy to use;
The use of special high alloy filament lamp life;
Dual sensor temperature;
Use iron double ball bearing fan, high temperature, long life;
Use pure stainless steel liner;
Drawer rail support with high temperature, easy to use;
Tight insulation processing;
Using industrial-grade display and control circuit;
Simple, intuitive, and efficient man-machine interface design.
NOTES
1,Please use a separate 15A or more dedicated power outlet, do not share the same electrical
outlet with other electrical appliances, and the power outlet must be reliable grounding. Reflow
oven should be placed horizontally; the surrounding wall should be more than 20cm gap.
2,Do not use reflow oven in humid or high temperature environments.
3,Please don't wash the machine directly with water, so as not to destroy the insulation
performance of the machine.
4,Do not insert wire or other foreign objects into the air inlet and outlet, so as to avoid burns or
affect the ventilation and heat.
5,Do not put flammable, explosive dangerous goods ncar the reflow oven; items with flammable
and explosive gas can't be dried to avoid danger.
