CE Approve 3.5mm High Speed Pick And Place Machine With Built In PC CHM-T510LP4
CHM-T510LP4 Introduction
This is CHM-T510LP4, a high-performance pick and place machine ,CHM-T510LP4 possesses the capability to satisfy the requirements for the placement of LED lamp beads on PCB board which could be 1.2 meters long.
It has 8 feeder stacks, support for Yamaha pneumatic feeders and stick feeders with tubular components,it support 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.(resistor/capacitor/diode/triode/LED/IC, etc.)
Specifications Of CHM-T510LP4
| CHM-T510LP4 Specifications |
| Dimensions | 2060mm(L)×605mm(W)×700mm(H) |
| Weight | 145kg |
| Power Supply | AC220V (50Hz, single phase)/AC110V (60Hz, single phase);400W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 11000cph(optimal without vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～1200mm(L)×240mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt+ linear guide |
| Feeding System | 8 Yamaha standard pneumatic feeder stacks, Yamaha electric feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |

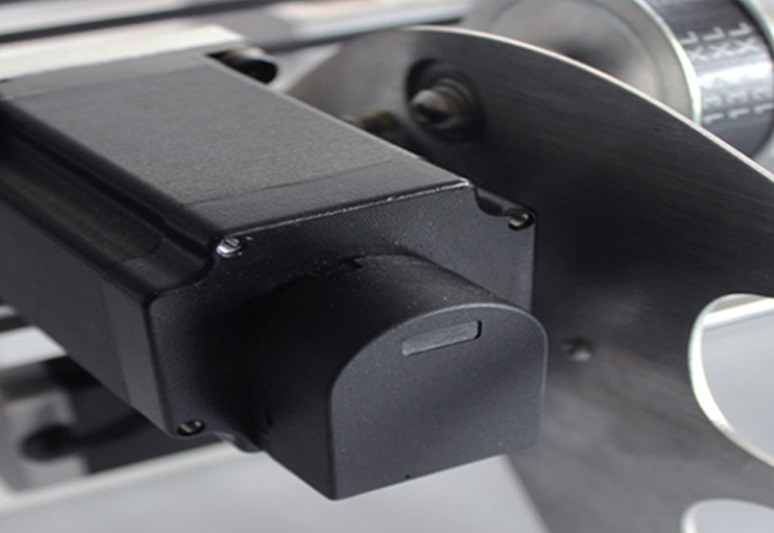

Closed-loop motion control system
It can be four-axis linkage ,move faster and smoothly .Both nozzle can working together ,not single nozzle working any more. support single step.XY axis encoder installed, never lose step ,flexible S accelerate and decelerate, make sure high speed placement working perfect
Video link:
https://youtu.be/aJbOOIobP5A About Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/bwF2IB5wsbk CHM-T510LP4 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
FAQ
Import Taxes Or Duties
1). Import duties, taxes and charges are not included in the item price or shipping charges,These
charges are the buyer' s responsibility.
2).Please check with your country' s customs office to determine what these additional costs will be
prior to bidding/buying.
3).Please confirm detailed information about delivery invoice, like how much price we should write
on delivery invoice, how much transportation charge we should write on invoice , how to describe
the goods etc.
4).These charges are normally collected by the delivering freight (shipping) company or when you
pick the item up-do not confuse them for additional shipping charge.
Our Service
The SMT machine will be tested 100% well before ship out.
Tools and manuals are complete included in the package.
We provide online Q/A and troubleshooting support and technical advice service.
