automatic nozzle change flying camara CHM-861 Automatic High Speed Vertical SMT Pick & Place Machine
CHM-861 VERTICAL AUTOMATIC HIGH SPEED PICK AND PLACE MACHINE
VERTICAL AUTOMATIC HIGH SPEED PICK AND PLACE MACHINE CHM-861 SPECIFICATION:
| CHM-861 Specifications |
| Dimensions | 1600mm(L)×1430mm(W)×1530mm(H) |
| Weight | 1596kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 8 |
| Mounting Speed | 30000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W)(standard); 600mm(L)×350mm(W) (optional) 1200mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 10) equipped with monitor, keyboard, and mouse |
| Drive System | X&Yaxisdriven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Yaxis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws) |
| Feeding System | 100 NXT standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×8 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |

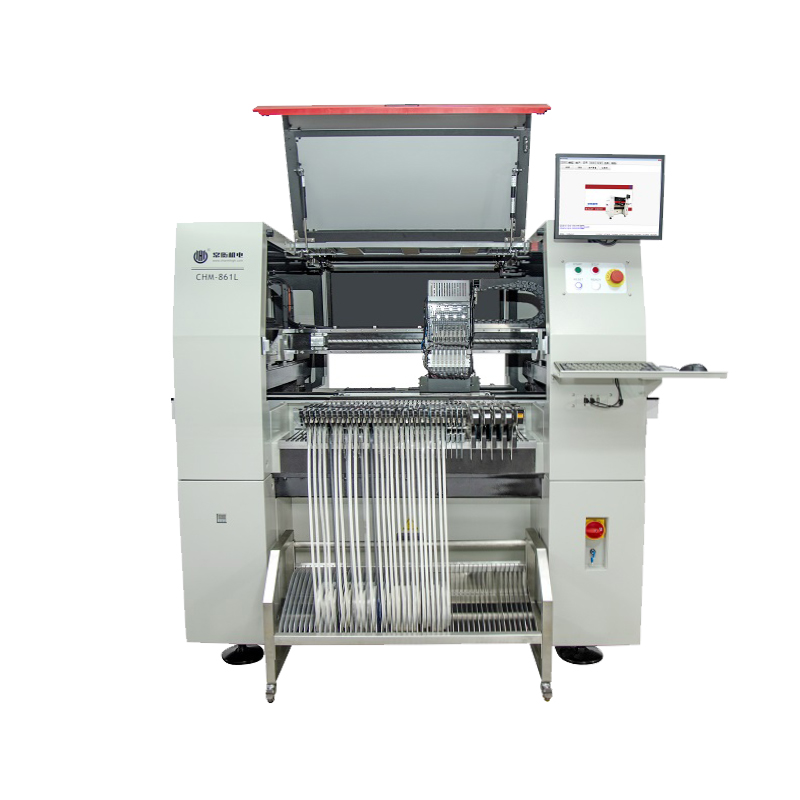

CHM-861 Vertical SMT Pick and Place Machine
【 Basic parameters】
Dimensions: 1600 (L) × 1430 (W) × 1530 (H)
Net weight: 1600kg
Power supply: AC380V (50/60Hz, three phase)
Power: 4.5kw
PCB thickness: 0.6-3.5mm
【 Functional configuration】
Heads:8pcs
Feeder quantity: 100pcs tape feeder supported (based on 8mm)
Feeder type: Fuji NXT electric feeder
PCB delivery: 3 pieces auto delivery with rails
Support for PCB: Yes
Motor: Panasonic servo motor
Transmission: THK screw and guide rail
Auto nozzle change: support (37 position in nozzle library)
Vacuum: built-in vacuum pump
Computer: Build-in IPC (Windows)
Auto programming optimization: support
【 Vision system】
IC camera: 1pcs (40mm)
Flying camera: 8pcs (18mm)
MARK camera: 2pcs
【 Performance parameter】
Accuracy: ±50μm@μ±3σ
Speed: 43000 CPH (optimal)
Maximum component height: 12mm
PCB thickness: 0.6~3.5mm
PCB size: 450 (L)*350 (W) /600*350mm/ 1200(L)×350mm
Our company Hunan Charmhigh Electromechanical Equipment Co., Ltd. is located in the Changsha High-tech Development Zone, covering a total area of 3600 square meters ,with more than 100 employees here.
As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
Different series of multi-head full-automatic SMT machines have been developed and manufactured by Charmhigh to meet various practical production needs.
In accordance with the business philosophy of “Customer First, Innovation Paramount”, Charmhigh has enjoyed high fame at home and abroad.
If you have interest in our products please kindly contact me I will give you immediate reply .
Thanks & best regards
Ellen Meng
