Desktop Charmhigh Pick and Place Machine CHM-T48VA with Vision System
This is CHM-T48VA, a small desk-top pick and place machine ,

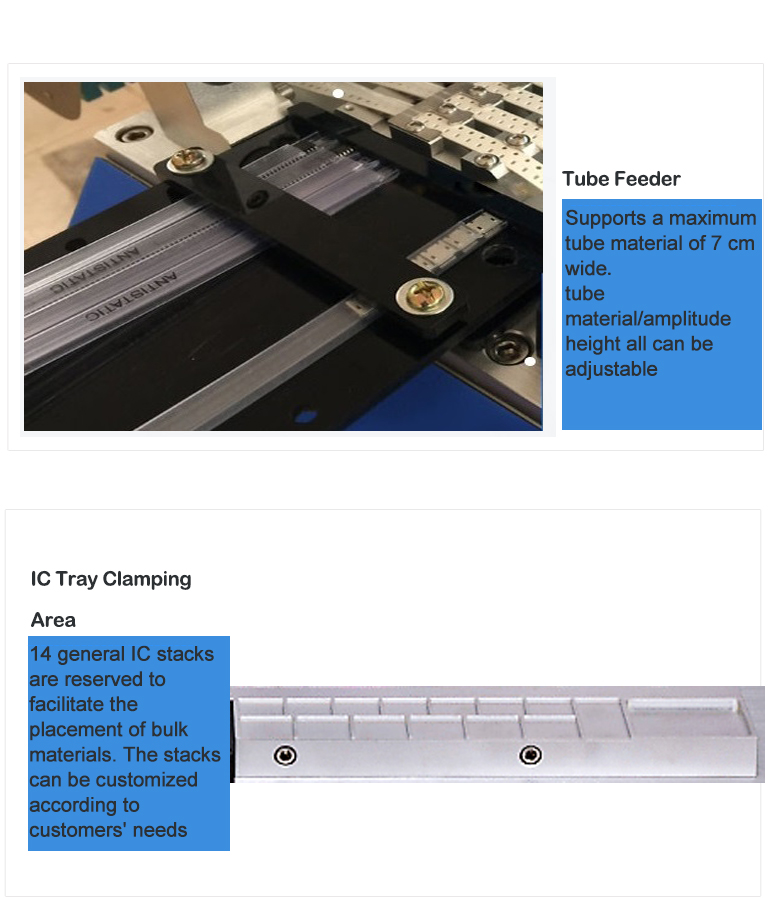

It is characterized by 29 tape feeding stacks, support for stick feeders,
14 general IC stacks preset at the front end and several self-defined IC tray stacks
in the rear, automatic correction to pick components, and automatic positioning
through recognition of Mark Point for high mounting accuracy,motor driven
in the way of closed-loop control realized by encoder,integrated operation
with built-in industrial computer.
Besides, CHM-T48VA possesses the capability of automatic detection of Z axis.
| CHM-T48VASpecifications |
| Dimensions | 940mm(L)×710mm(W)×340mm(H) |
| Weight | 39kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph(optimalwithout vision detection); 4000cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt+polished rod |
| Feeding System | 29 tape feeding stacks(8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feedersupported |

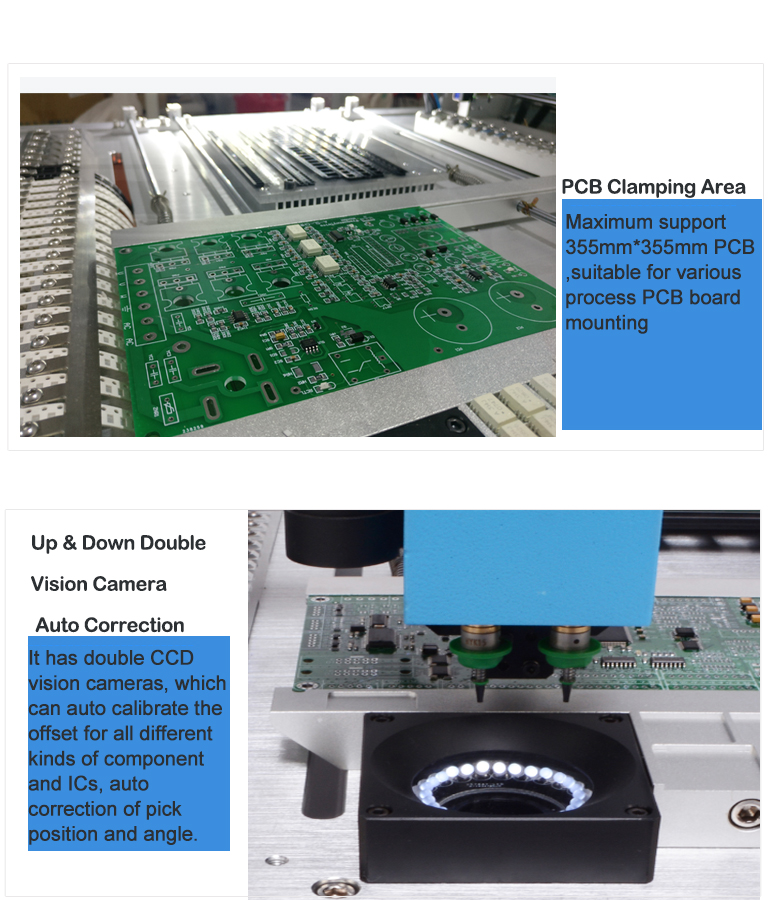

| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Our advantages
Our service
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.
