AC220V 6 Heads Pick And Place PCB Assembly With Vacuum Generator

Name: AC220V 6 Heads Pick And Place PCB Assembly With Vacuum Generator
Brand: charmhigh
Price: 1 USD

China AC220V 6 Heads Pick And Place PCB Assembly With Vacuum Generator wholesale

Brand Name : charmhigh

Model Number : CHM-750

Place of Origin : Hunan, China (Mainland)

MOQ : 1pcs

Price : Negotiable Price

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 20PCS/days

Delivery Time : 1-5days

Packaging Details : plywood box with strong foam package

Certification : CE

Weight : 520kg

Power Supply : AC220V (50Hz, single phase), 2.8kW

Air Supply : 0.5MPa ~0.7MPa

Vacuum Generation : Vacuum generator

Mounting Accuracy : ±50μm@μ±3σ/chip

PCB Thickness : 0.6mm~3.5mm

PCB Size : 400mm(L)×350mm(W)

PCB Conveying : 3-section-rail automatic conveying

Nozzle Change : Automatic nozzle change (19-hole nozzle library

Contact Now

AC220V 6 Heads Pick And Place PCB Assembly With Vacuum Generator

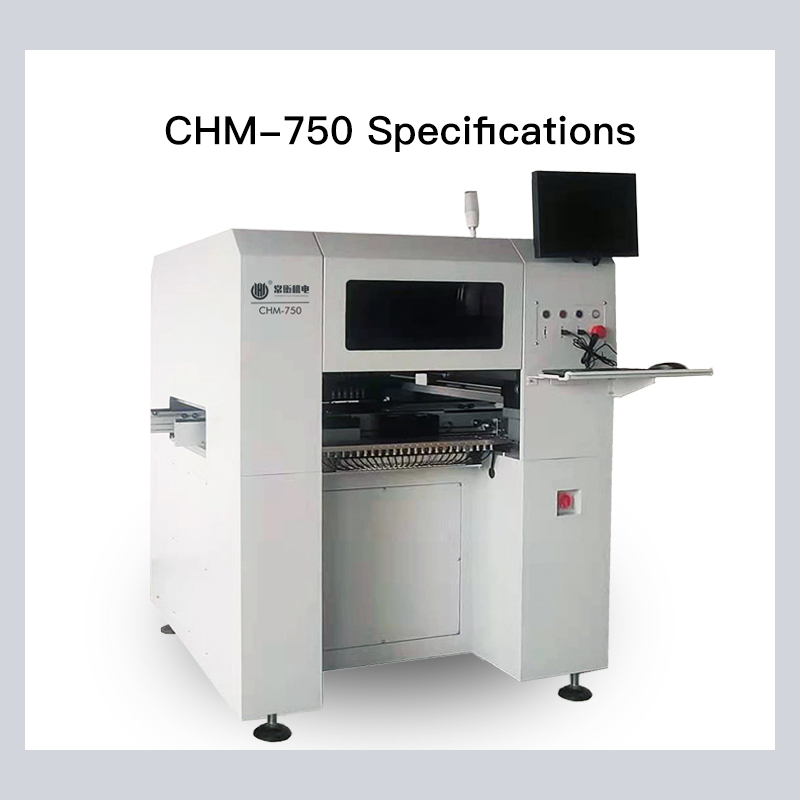

CHM-750 Specifications
Dimensions	1280mm(L)×1190mm(W)×1470mm(H)
Weight	520kg
Power Supply	AC220V (50Hz, single phase), 2.8kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Vacuum generator
Mounting Head Quantity	6
Mounting Speed	15000cph (optimal)
Mounting Accuracy	±50μm@μ±3σ/chip
Control Accuracy	5μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	400mm(L)×350mm(W)
PCB Conveying	3-section-rail automatic conveying
Nozzle Change	Automatic nozzle change (19-hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	Ball screw + linear guide (Y axis with double screws)
Feeding System	50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2

AC220V 6 Heads Pick And Place PCB Assembly With Vacuum Generator

PCB Samples:

Our Service:

This SMT machine will be tested well before ship out.

Tools and manuals are complete included in the package.

Each machine 100% test well before ship out.

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.

Support as well as a long term factory price supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service.

If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.

Tech support:

Tel:+86 19974864383/0731-85504084

Email:shelleywu@charmhigh.com

one@charmhigh. com

Skype/WhatsApp/WeChat ID :+86 19974864383

website:Http://en.charmhigh.com
