AC220V Multifunctional Pick And Place Automation Equipment With 7 Cameras
CHM-650 Description

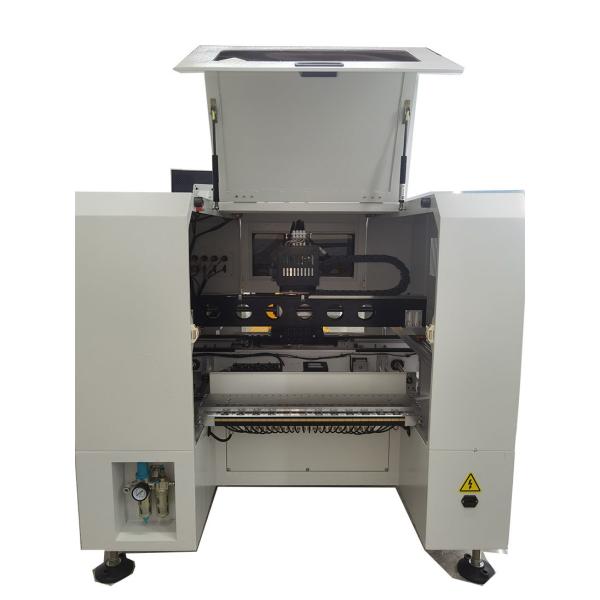

CHM-650 is a high-speed and good-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.
CHM-650 Pick and Place Machine is characterized by 50 feeder stacks, 4 heads capable of 360-degree rotation,support for Yamaha pneumatic feeders ,stick feeders with tubular components, automatic correction to pick components, integrated operation with built-in industrial computer.
CHM-650 Parameters
| CHM-650 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1050mm(H) |
| Weight | 310kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head Quantity | 4 |
| Mounting Speed | 10000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×4 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
1. Q: How many nozzles do you supply? Do you sell nozzles and spares?
A: The CHM-650 has 4 nozzle-heads, we supply 8 nozzles. Yes, we do sell nozzles and spares. If you need any spare parts, just let us know.
2. Q: Do you provide software updates?
A: Customers who buy our machines, we can offer free upgrades software for you.
3. Q: What air supply is required?
A: Oil free compressor and air dryer be used.
4. How about the warranty?
A: We support one year warranty. We will regularly update the software for customers. If there is any doubt in the process of operating the machine, please feel free contact us.
All the spare parts will be provided free of charge for you within the warranty period.
Our Service
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We can provide online Q/A support and technical advice service.
We will provide one to one after-sale service.
