4 mounting heads Automatic Electrical Desktop Pick And Place Machine Charmhigh CHM-530P4 Pcb Assembly Line
| CHM-T530P4 Specifications |
| Dimensions | 1060mm(L)×780mm(W)×600mm(H) |
| Weight | 115kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 400W |
| Air Supply | 0.5MPa~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 8000cph(optimalwithout vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×330mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |

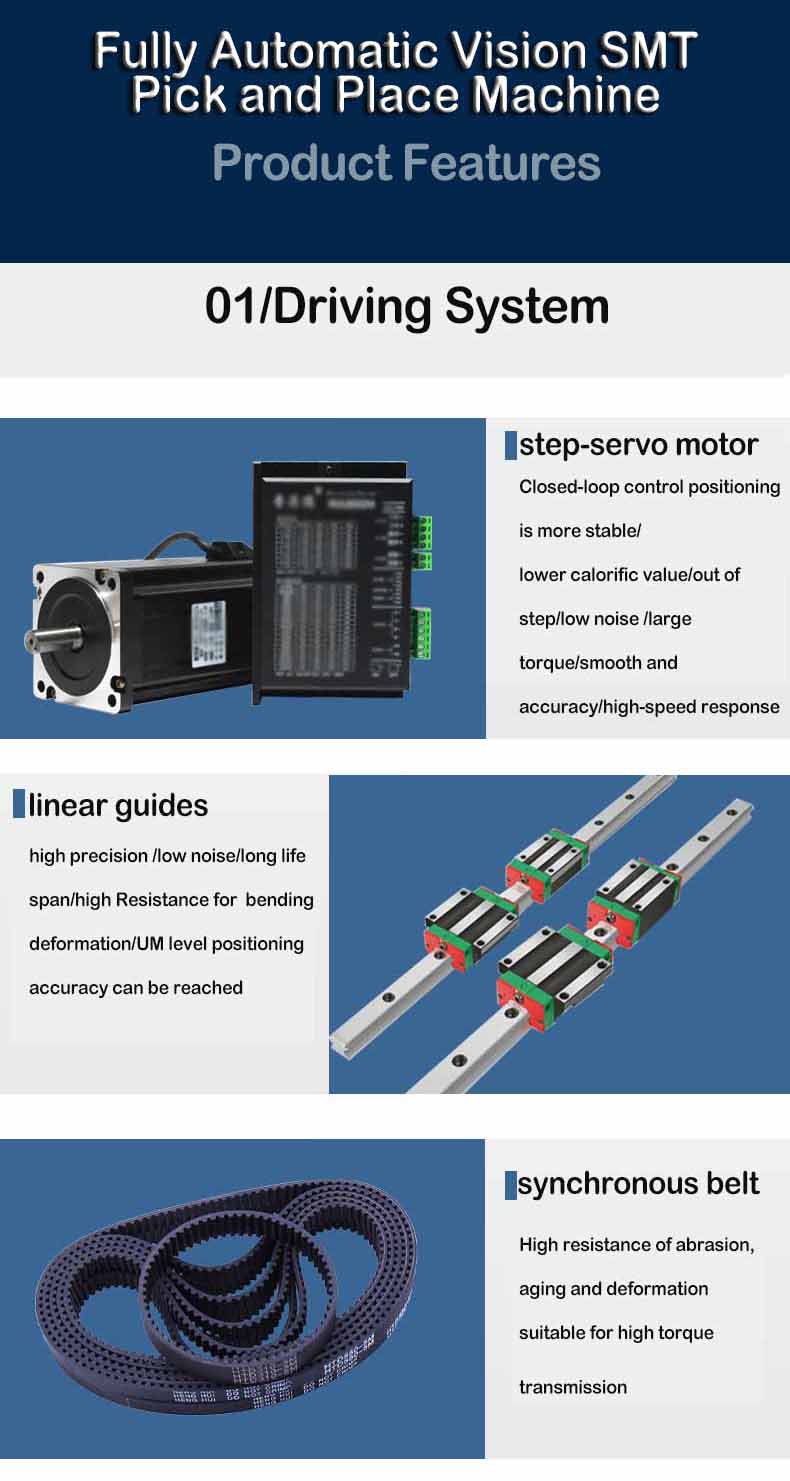

| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Feeding System | 30 Yamaha standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
This is CHM-T530P4, a high-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.
It is characterized by 30 feeder stacks, support for Yamaha pneumatic feeders, electric feeders, and stick feeders with tubular components, 4 heads capable of 360-degree rotation, automatic correction to pick components, automatic positioning through recognition of Mark Point, and integrated operation with built-in industrial computer.
Besides, the X and Y axes of CHM-T530P4 are driven by high-voltage stepping motor. And its Z axis is capable of reset detection.
CHM-T530P4 possesses the capability to mount small components with 0402 as the minimum one.
