Control Accuracy 0.025mm SMT SMD Pick and Place Machine for PCB Prototype CHM-T36VA
CHM-T36VA pick and place machine is a fully automatic visual mounter specially designed for users ,the CHM-T36VA need connecte to PC, and it is convenient for users to store ,modify and edit directly on PC.
| CHM-T36VA Specifications |
| Dimensions | 940mm(L)×710mm(W)×340mm(H) |
| Weight | 39kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase);
300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph(optimal without vision detection);
2500cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | External computer required (Windows) |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt+ polished rod |
| Feeding System | 29 tape feeding stacks(8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Video
https://youtu.be/UAkW3-szWOs CHM-36VA of Hunan Charmhigh Electromechanical Equipment Co., Ltd
Product Exhibition
CHM-T36VA support 29 tape feeding stacks:29 Tape feeding stacks:8mm:22, 12mm:4,16mm:2, 24mm:1.

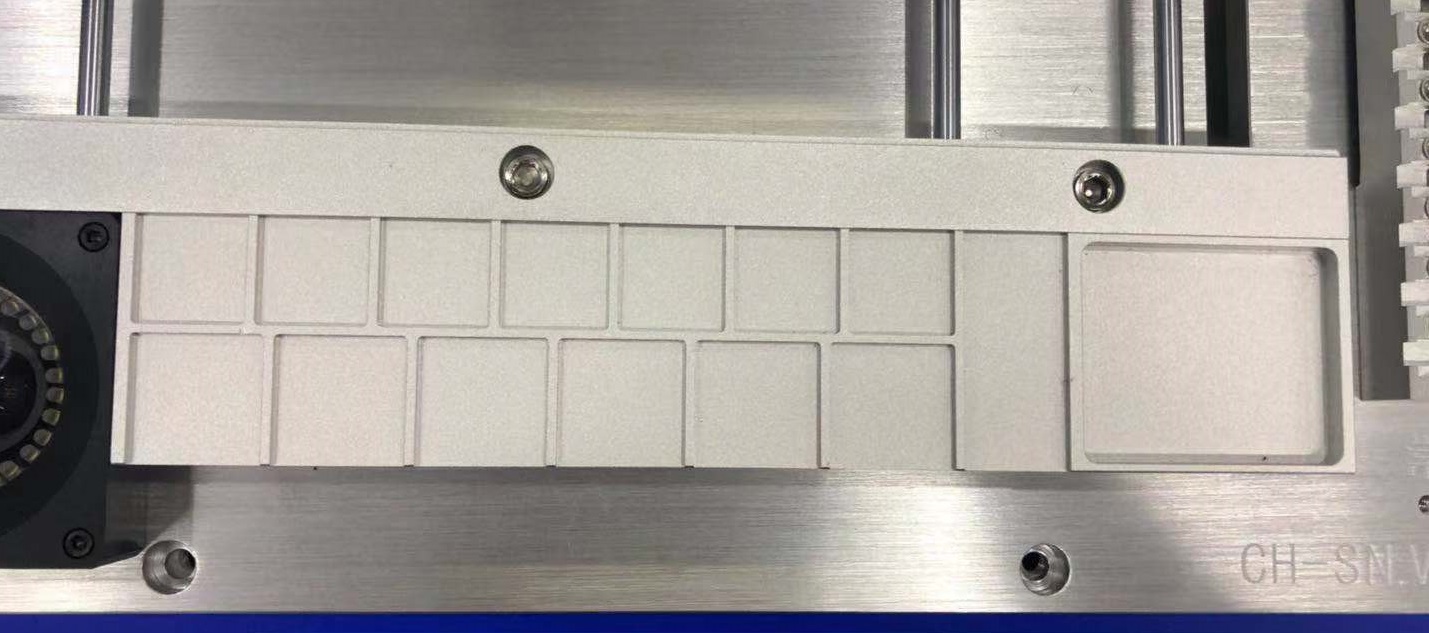

IC Tray Clamping Area of CHM-T36VA :preset 14 general IC stacks to facilitate the placement of bulk IC and other components, providing convenience for the laboratory and teaching ,and it can be customized according to customer's needs.

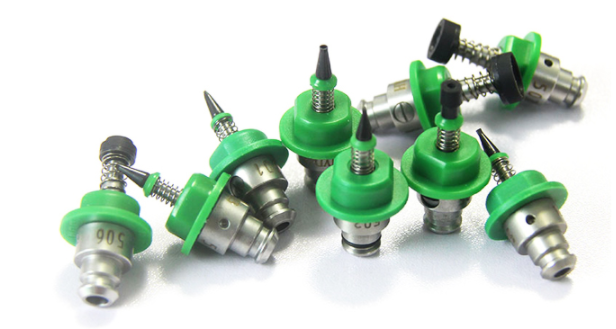

The machine support a variety of high precision nozzles
Pick and Place Machine Nozzles |
| Standard | 503 | Scope of application | 0402,0603 |
| 504 | 0603,0805,1206,SOP8,SOT23 |
| 505 | SOP8,SOP32,SOT,QFN |
| 506 | QFN,TQFP,BGA,Package size within 20mm |
| Optional | 501 | 0201 |
| 502 | 0402 |
| 507 | QFN,TQFP,BGA,Package size over 20mm |
FAQ
1. Whether the linear guide rail and round rod have an impact on the accuracy of the SMT pick and place machine ?
No impact at all .Using linear guide rail or round rod has no effect on the accuracy of the mounting machine, the precision of the mounting machine depends on the motor and software control system used by the mounting machine only.
2. Is the software control system of your desktop SMT independently developed by your company?
Yes, our desktop SMT uses Linux system. Linux system supports cross-platform hardware support, rich software support, reliable security and stability.
3. Do you use electromagnetic coil to control the pulling needles? What are the advantages if comparing to cylinder control?
Yes, the drawing needle we use is controlled by the electromagnetic coil. Comparing with the cylinder control, the electromagnetic coil control has the characteristics of faster response, softer force and less noise. The quick reaction can speed up the mounting speed; Soft strength refers to the strength of the pull needle is soft when pressing down, and the pull needle is not easy to break.
Notes
1.Machines need keeping away from the humid environment and dust, or which will get on electrical shock and fire.
2.Machines need lying stable platform, or which the shake may lead to reduce the precision and even turn over and personal injury.
3.Don’t dismounting the machines casually, or the machine may be broken.
4.Don’t touch the optical axis and the mounting head, or which may damage the machine and hurt yourselves.
Hunan Charmhigh Electromechanical Equipment Co., Ltd is the well-known manufacturer in China.
The Charmhigh is located in the Changsha High-tech Development Zone
As a professional modern science and technology enterprisewith production and marketing, Charmhigh has been a leader in SMT technology for more than ten years.
Different series of multi-head full-automatic SMT machines have been developed and manufactured by Hunan Charmhigh to meet various practical production needs.
Our service
This SMT machine will be tested 100% well before ship out.
Tools and manuals are complete included in the package.
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
If you want to get more information or support ,Please don't hesitate to contact me,we will response you at first time.
