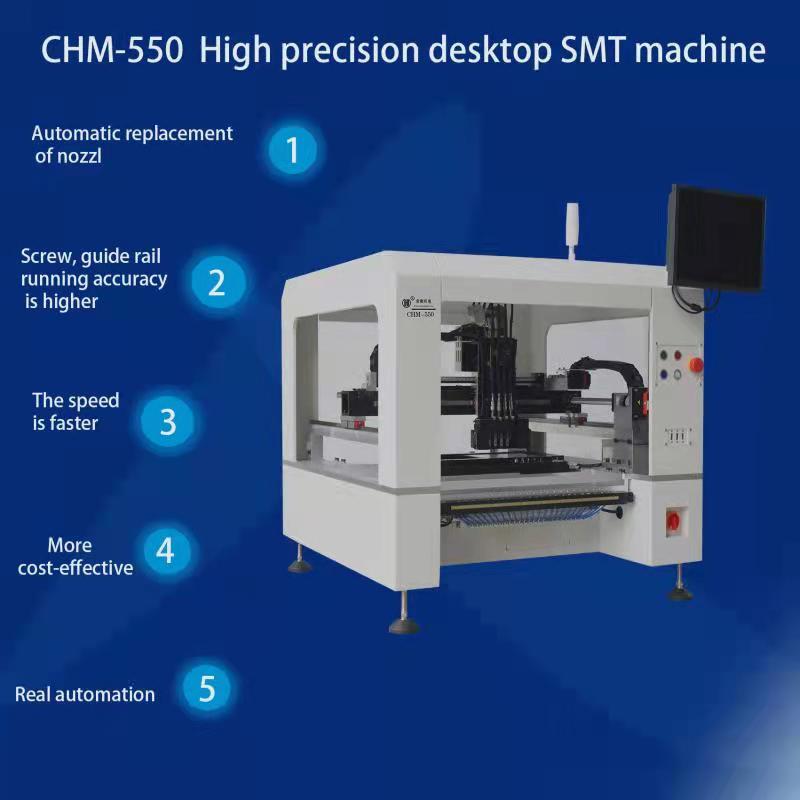

4 Heads CHM-550 Desktop High Precision SMT Pick and Place Machine

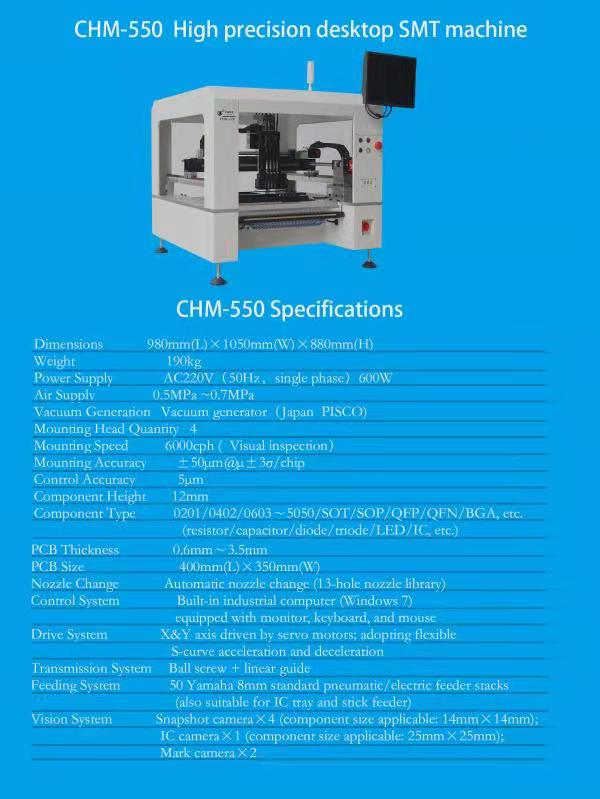

| CHM-550 Specifications |
| Dimensions | 980mm(L)*1050mm(W)*880mm(H) |
| Weight | 190kg |
| Power Supply | AC220V(50Hz,single phase),800W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Japan PISCO Vacuum generator |
| Mounting Head Quantity | 4 |
| Mounting Speed | 6000cph (optimal with vision detection) |
| Mounting Accuracy | ±50um@μ±3σ/chip |
| Control Accuracy | 5um |
| Component Height | 12mm |
| Component Type | 0201/0402/0603~5050/SOT/SOGFPIQFN/BGA,etc. |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×290mm(W) |
| PCB Conveying | Manual operation |

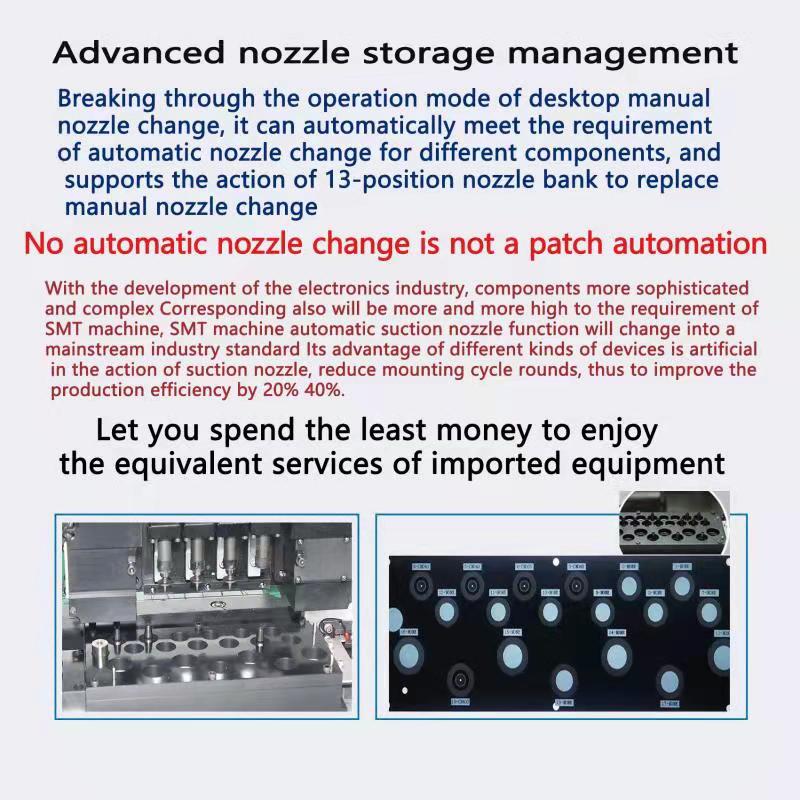

| Nozzle Change | Automatic nozzle change(13-hole nozzle library) |
| Control System | Built-in computer (Windows 7) equipped with monitor, keyboard,and mouse |

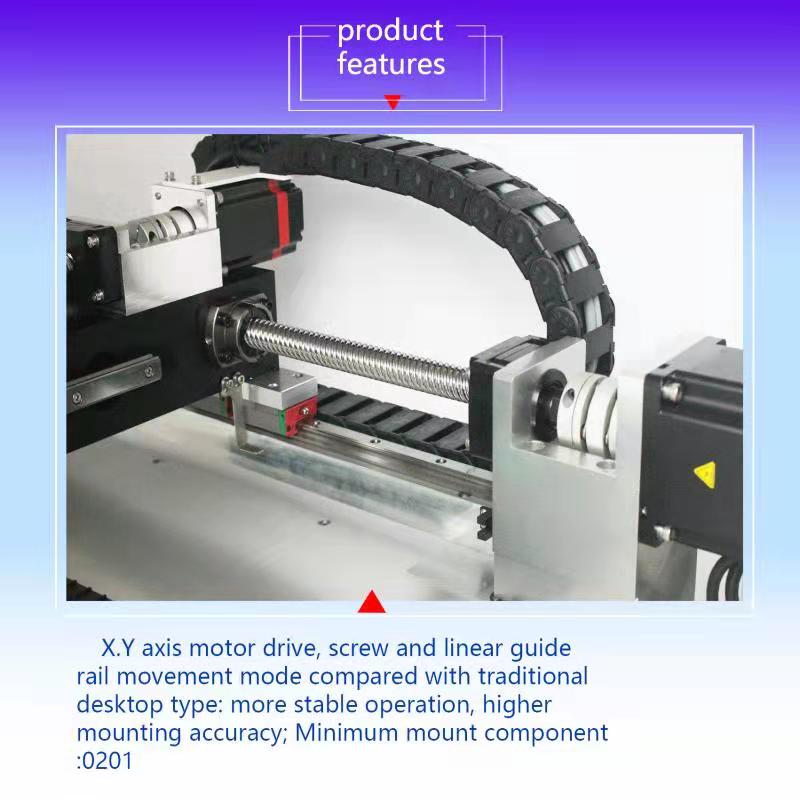

| Drive System | X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration |
| Transmission System | acceleration and deceleration |

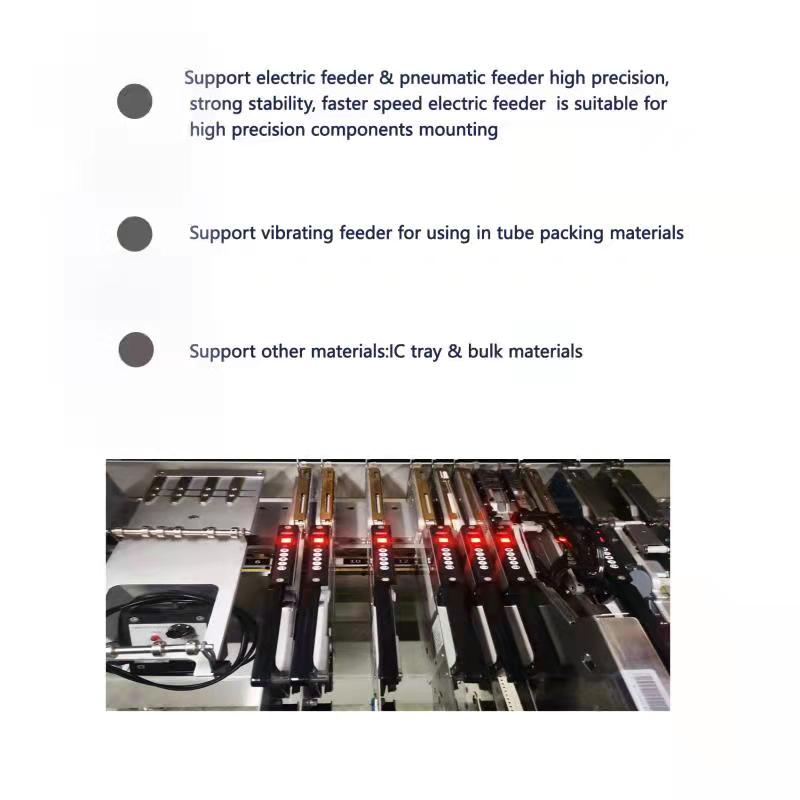

| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for lC tray and stick feeder) |
| Vision System | Snapshot camerax4(component size applicable: 14mmx14mm); IC camerax1(component size applicable:25mmx25mm); Mark camerax2 |
