High Precision CHM-T510LP4 Electronic Products Machinery Smt Pick And Place Machine
Charmhigh CHM-T510LP4

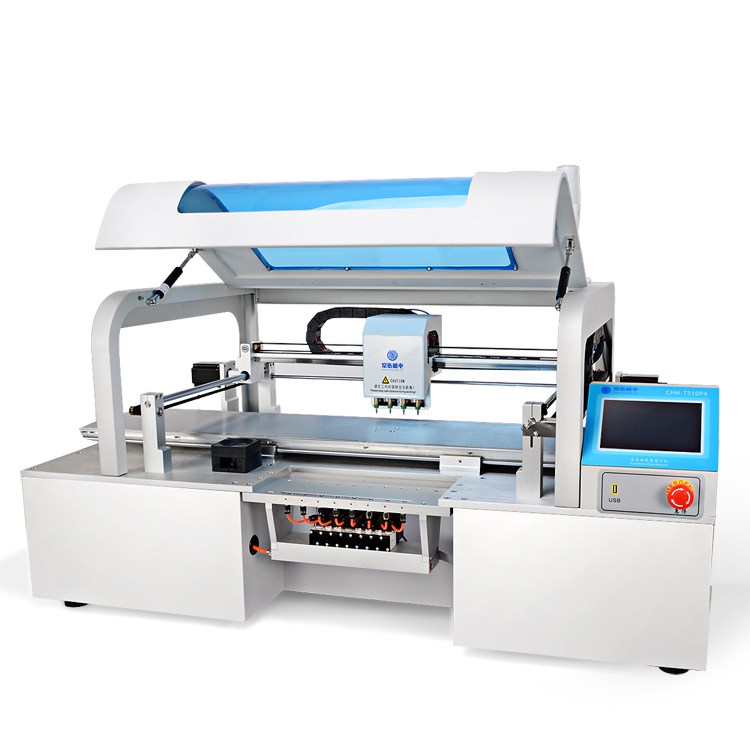

CHM-T510LP4 is a professional LED design pick and place machine with 1.2m moving table, 4 heads and 8pcs Yamaha feeders. The operation system is industry level embedded Linux system. CHM-T510LP4, using 502---507 different kinds of Juki nozzles, is suitable for 0402, 0603, 0805-5050, SOP, QFN, LQFP, Diode,Transistor, BGA...etc, which can meet more customers' demand. The main board of this machine was researched by ourselves, which is more reliable than windows system, and life time is much longer.
Specification
| Dimensions | 2060mm(L)×605mm(W)×700mm(H) |
| Weight | 145kg |
| Power Supply | AC220V (50Hz, single phase)/AC110V (60Hz, single phase); 400W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 11000cph(optimalwithout vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～1200mm(L)×240mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt+linear guide |
| Feeding System | 8 Yamaha standard pneumatic feeder stacks, Yamaha electric feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
