4-Head Smt Led Machine CHM-T530P4 Electronic Products Machinery Pick And Place
CHM-T530P4 has 4 heads, mounting speed is faster. The operation system is embedded Linux system, the main board of machine was researched by ourselves, which is more reliable than windows system, and life time is much longer. CHM-T530P4, using 502---507 different kinds of Juki nozzles, is suitable for 0402,0603,0805-5050, SOP, QFN, LQFP, Diode, Transistor, BGA...etc, which can meet more customers' demand.
Specification
| Dimensions | 1060mm(L)×780mm(W)×600mm(H) |
| Weight | 115kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 400W |
| Air Supply | 0.5MPa~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 8000cph(optimalwithout vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |

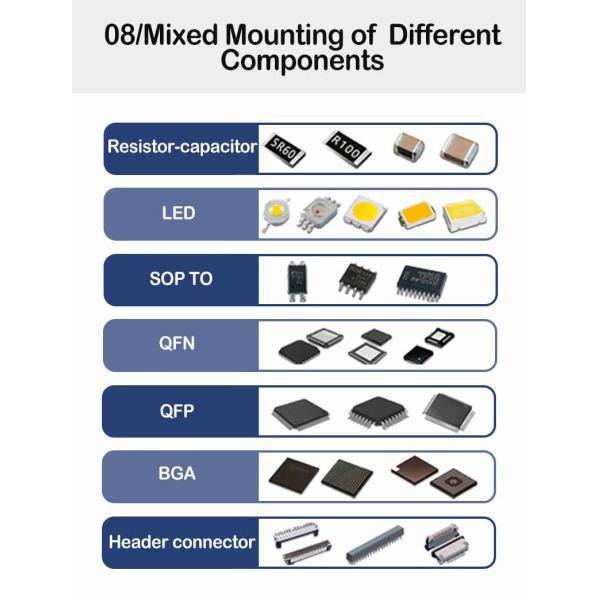

| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |

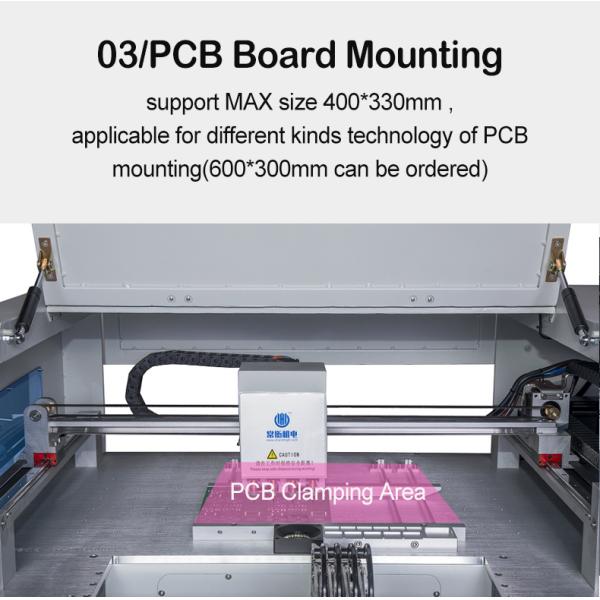

| PCB Size | 10mm(L)×10mm(W)～400mm(L)×330mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
| Feeding System | 30 Yamaha standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported. |
