Full Automatic Smt Pick And Place Machine Electronics Production Machinery

Name: Full Automatic Smt Pick And Place Machine Electronics Production Machinery
Brand: Charmhigh
Price: 1 USD

China Full Automatic Smt Pick And Place Machine Electronics Production Machinery wholesale

Brand Name : Charmhigh

Model Number : CHM-T48VA

Place of Origin : Hunan, China

MOQ : 1 set

Price : Negotiable Price

Payment Terms : T/T

Delivery Time : 10-12 work day

Packaging Details : wooden

Condition : New

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Engine, Pump

Contact Now

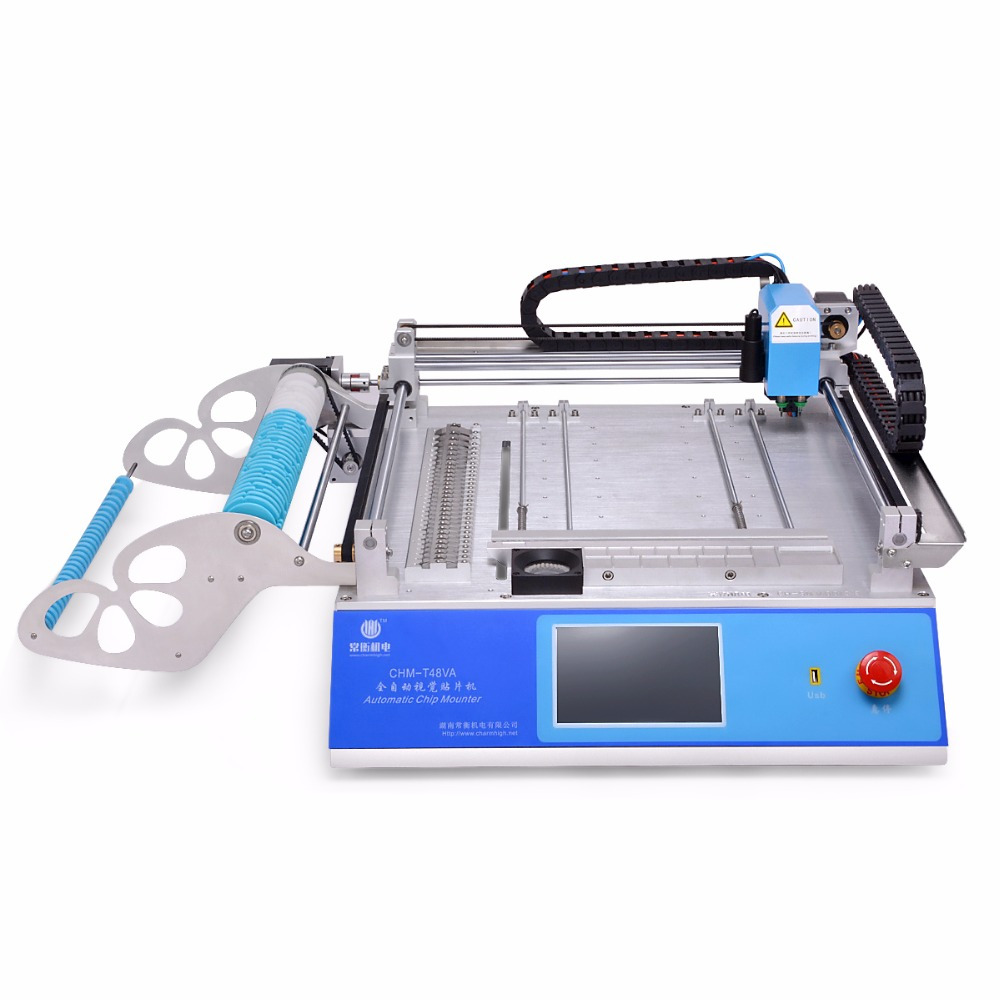

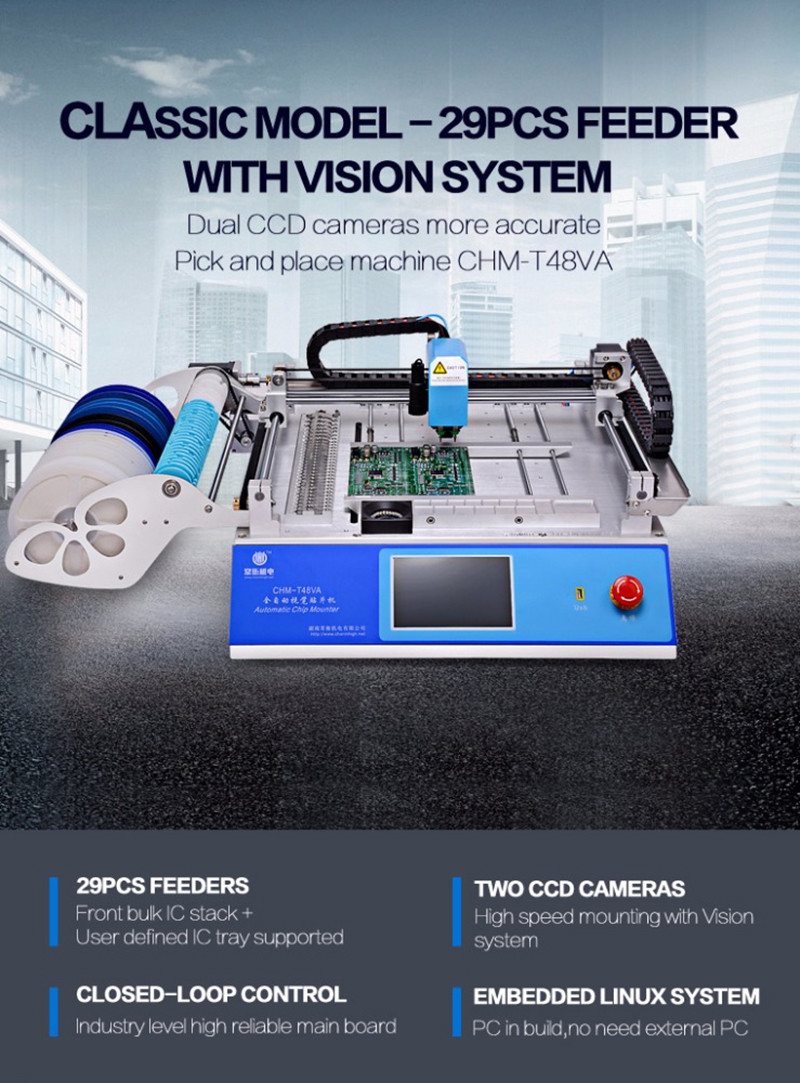

Full-automatic SMT Machine With Vision System

Charmhigh CHM-T48VA

Specification

 	 			Dimensions
 			940mm(L)×710mm(W)×340mm(H)

 			Weight
 			39kg

 			Power Supply
 			AC220V (50Hz, single phase) /AC110V (60Hz, single phase);
300W

 			Air Supply
 			No external air supply required

 			Vacuum Generation
 			Built-in vacuum pump

 			Mounting Head Quantity
 			2
 			Mounting Speed
 			6000cph(optimalwithout vision detection);
4000cph (optimal with vision detection)

 			Control Accuracy
 			0.025mm

 			Component Type
 			0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)

 			PCB Thickness
 			0.6mm~3.5mm

 			PCB Size
 			10mm(L)×10mm(W)～345mm(L)×360mm(W)

 			PCB Conveying
 			Manual operation

 			Nozzle Change
 			Manual operation

 			Control System
 			Built-in computer (embedded Linux operating system),
7-inch touch screen

 			Drive System

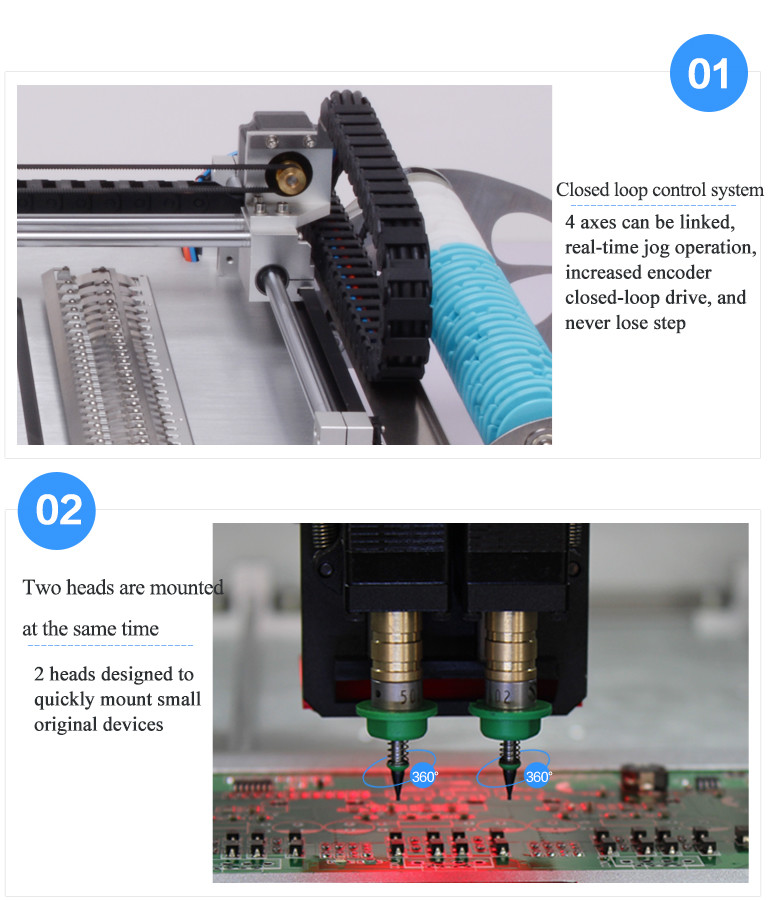

 			X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported

 			Transmission System
 			Synchronous belt+polished rod

 			Feeding System

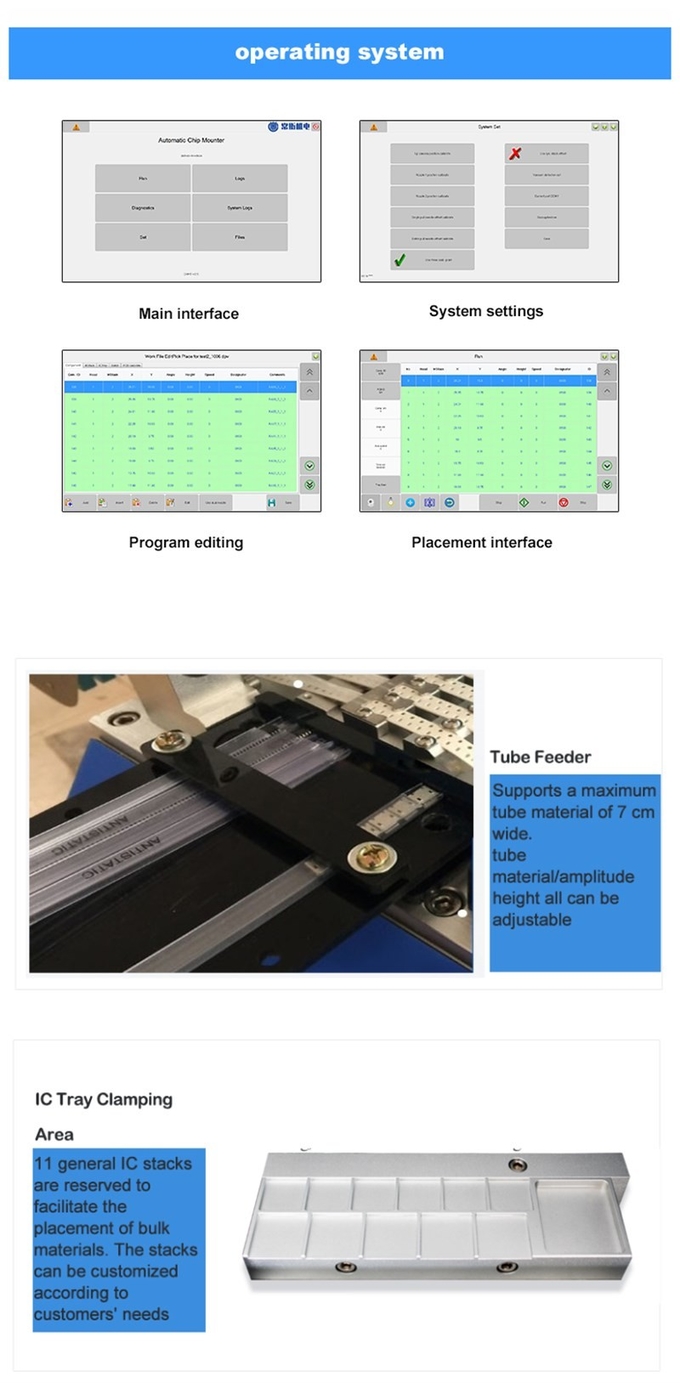

 			29 tape feeding stacks(8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feedersupported

 			Vision System
 			Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning

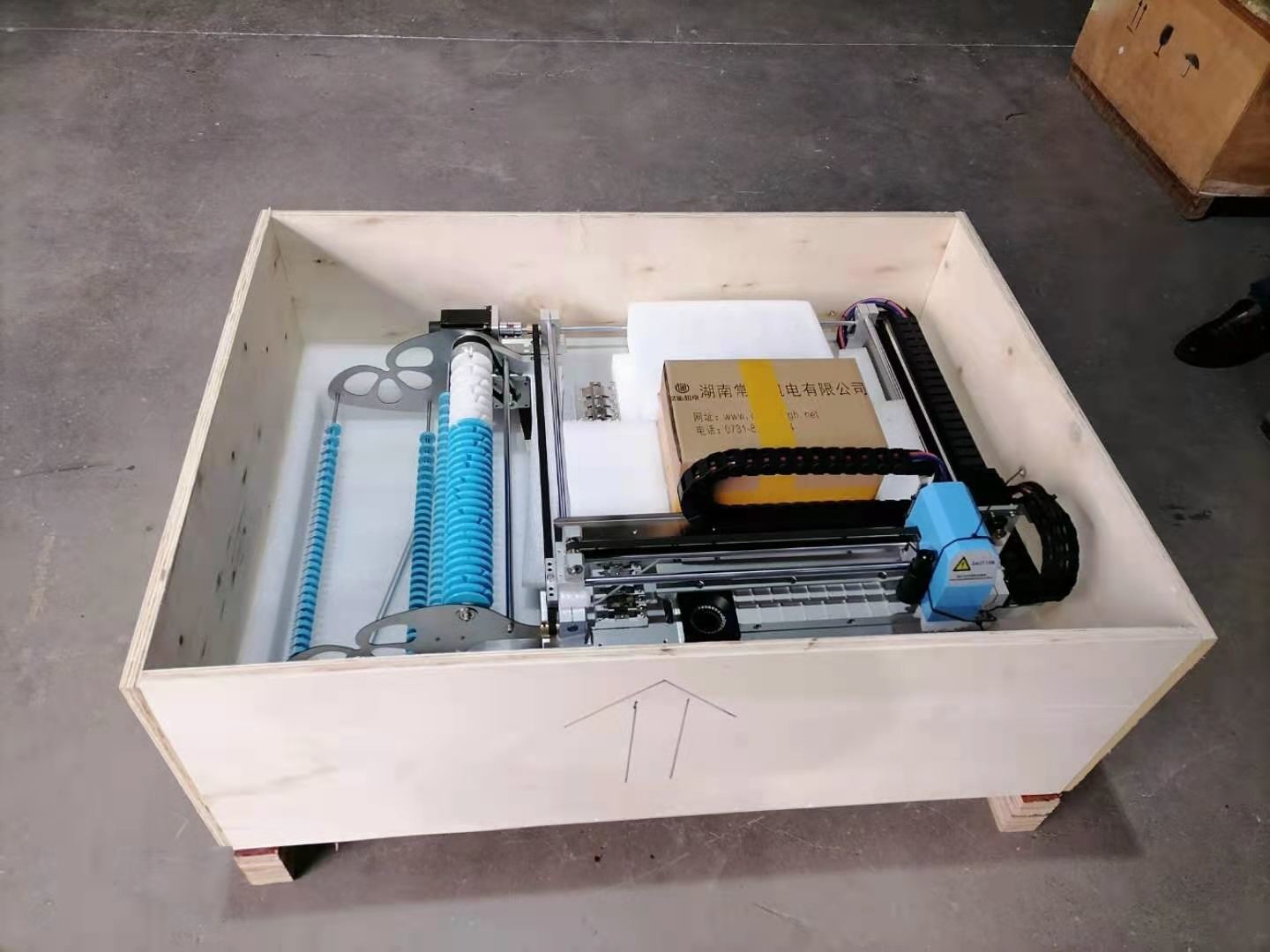

Packaging & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Clients & Exhibitions
Our Services
1. Before-sales Services
 Our salespersons always professionally, patiently, and sincerely introduce, recommend, and demonstrate different model of machines for our customers, so that the customers could choose the most suitable one in terms of their budget and practical production needs.

 2. In-sales Services
 This kind of services include providing customers with one-stop SMT solutions, overall and detailed quotation, clear and standard contract. During the whole process, our salespersons will actively communicate with the customers as to every aspect of the deal. As a result, our customers feel really happy and reassured about their purchase of our products.

 3. After-sales Services
 After-sales services refers to the provision of training and guidance for our customers to operate the newly-purchased machines, the maintenance of the machines in use, and the updating of the software as well as firmware.While enjoying our wholehearted after-sales supports, our customers unanimously express that they are greatly satisfied with the products and services provided by Hunan Charmhigh Electromechanical Equipment Co., Ltd.

FAQ
1. Who are we?
 We are based in Hunan, China, starting from 2009, selling to Domestic Market(45.00%), North America(10.00%), Southeast Asia(8.00%), Western Europe(8.00%), South America(7.00%), Oceania(4.00%), South Asia(4.00%), Eastern Asia(3.00%), Northern Europe(3.00%), Africa(2.00%), Central America(2.00%), Southern Europe(2.00%), Eastern Europe(1.00%),
Mid East(1.00%).

2. How can we guarantee quality?
 Always a pre-production sample before mass production; Always final Inspection before shipment;

 3.What can you buy from us?
 Pick and place machine, smt production line, stencil printer, reflow oven, cnc machine.

 4. Why should you buy from us not from other suppliers?
 Hunan Charmhigh Electromechanical Equipment Co., Ltd. has been a modern science and technology enterprise fully capable of research&development, manufacturing, and marketing of pick and place machine as well as SMT peripheral equipment for over 12 years.

 5. What services can we provide?
 Accepted Delivery Terms: FOB, EXW； Accepted Payment Currency: USD, CNY;
 Accepted Payment Type: T/T,Credit Card,Cash; Language Spoken: English, Chinese
GET MORE DETAILS OF OUR PRODUCTS AND SERVICES, CLICK ON THE URL: www.charmhigh.com.

Product Tags:

Electronics Production Pick And Place Machine

Smt Pick And Place Machine 6000cph

Full Automatic Smt Pick And Place Machine Electronics Production Machinery Images
