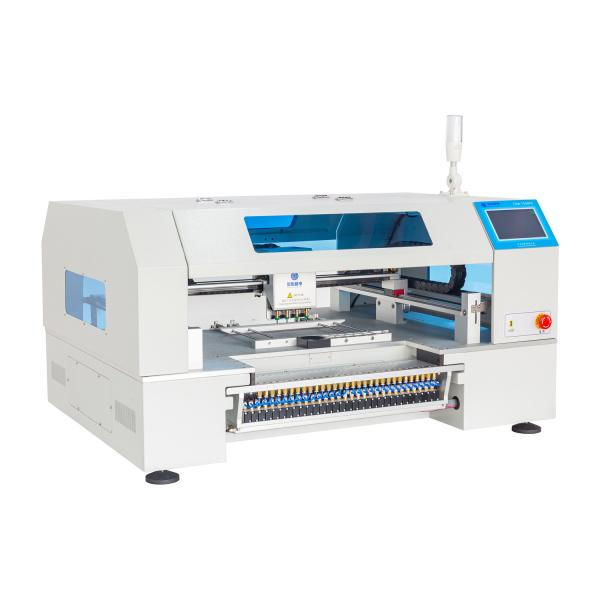

Charmhigh SMD Mounting Pick And Place PCB Assembly AC220V / AC110V

Name: Charmhigh SMD Mounting Pick And Place PCB Assembly AC220V AC110V
Brand: charmhigh
Price: 1 USD

China Charmhigh SMD Mounting Pick And Place PCB Assembly AC220V / AC110V wholesale

Brand Name : charmhigh

Model Number : CHM-T560P4

MOQ : 1Pieces

Price : Negotiable Price

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Day

Delivery Time : 5-8 work days

Packaging Details : wooden case

Vacuum Generation : Built-in vacuum pump

Vision System : Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB automatic calibration via Mark Point and component positioning

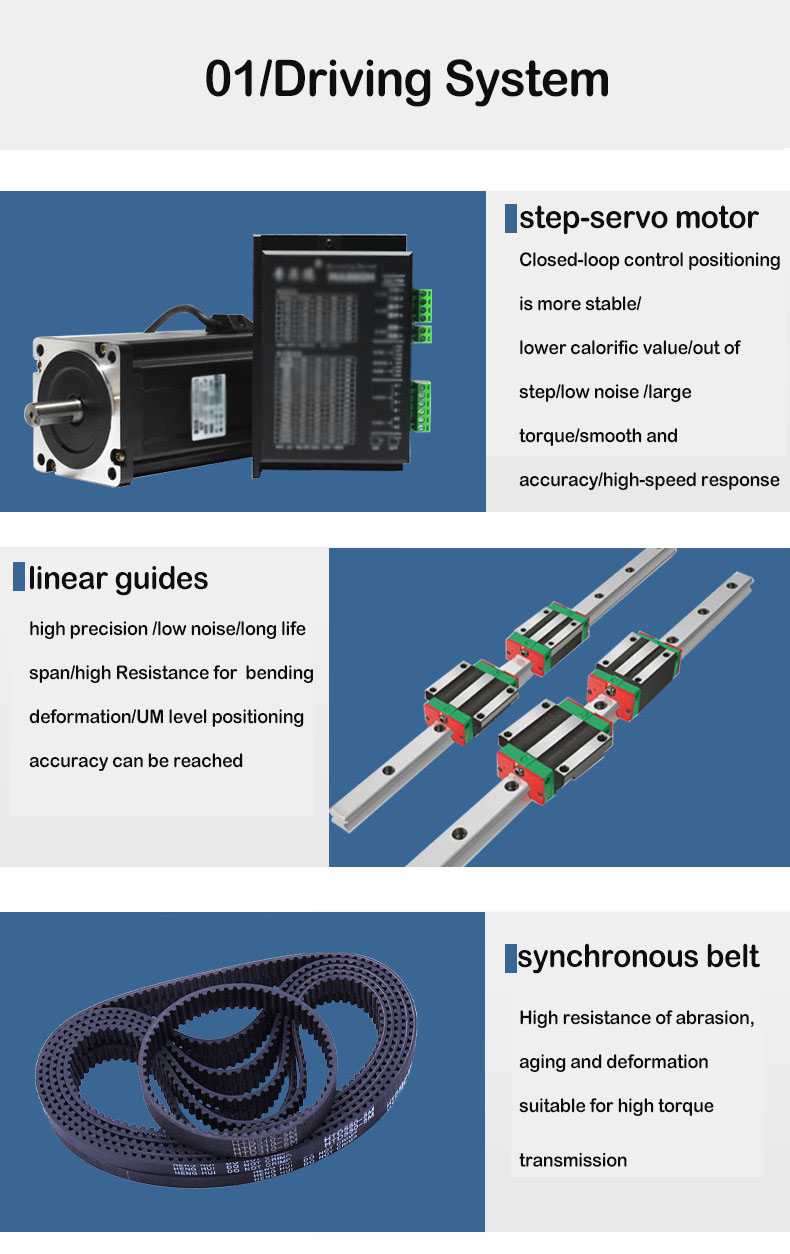

Transmission System : Synchronous belt + linear guide

Weight : 140kg

Drive System : X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration

Feeding System : 60 Yamaha standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported

Contact Now

High speed charmhigh pick and place pcb assembly smd mounting machine chmt560p4

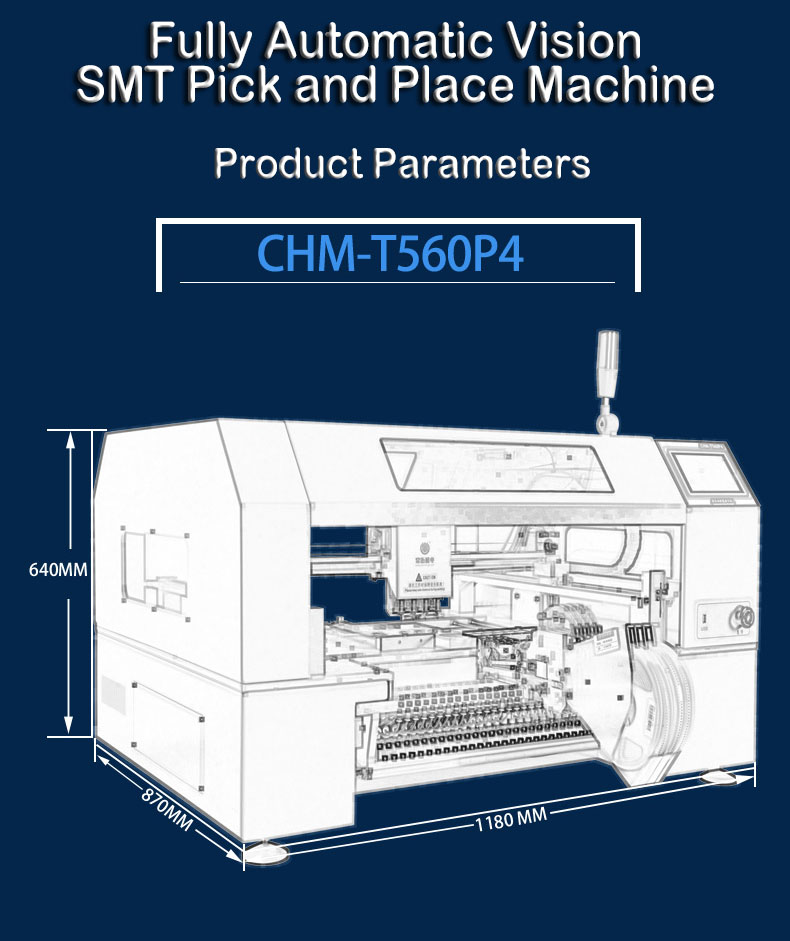

Specification

Condition	New
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Brand Name	charmhigh
Model Number	CHM-T560P4

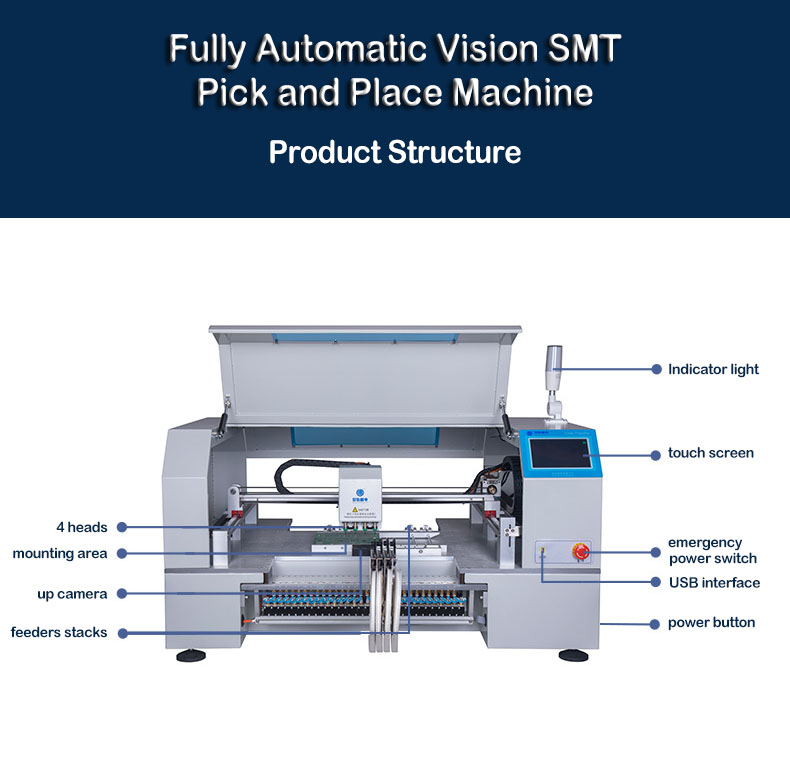

Product name	4-head small-sized vision pick and place machine
Package	Wooden Case
PCB conveying	manual operation

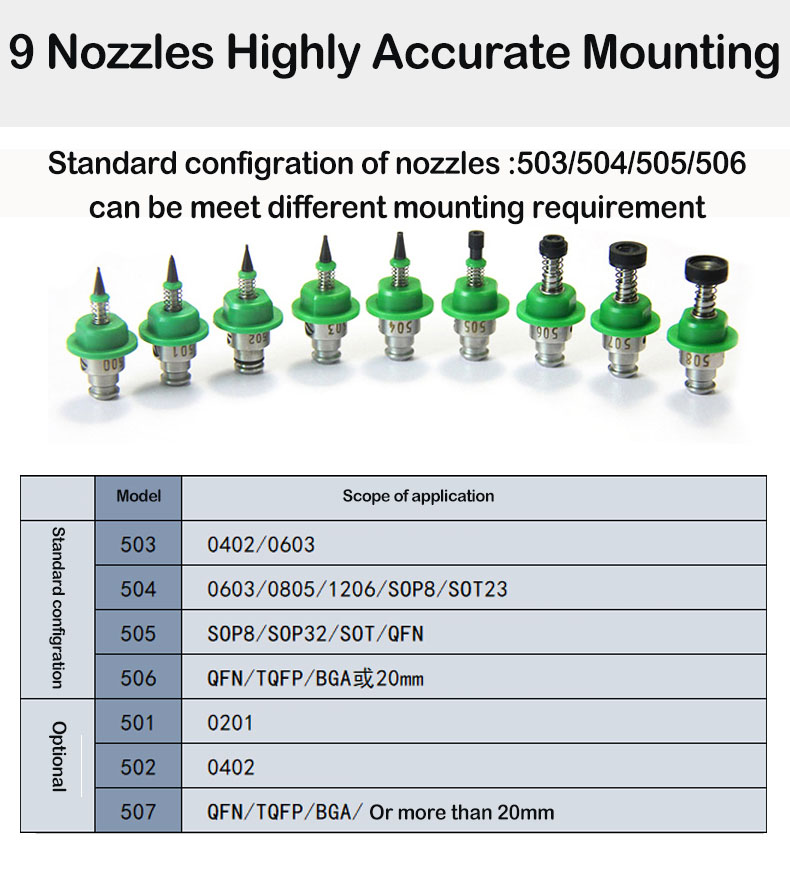

Nozzle Change	Manual operation
Power Supply	AC220V (50Hz, single phase) / AC110V (60Hz, single phase); 400W
Air Supply	0.5MPa

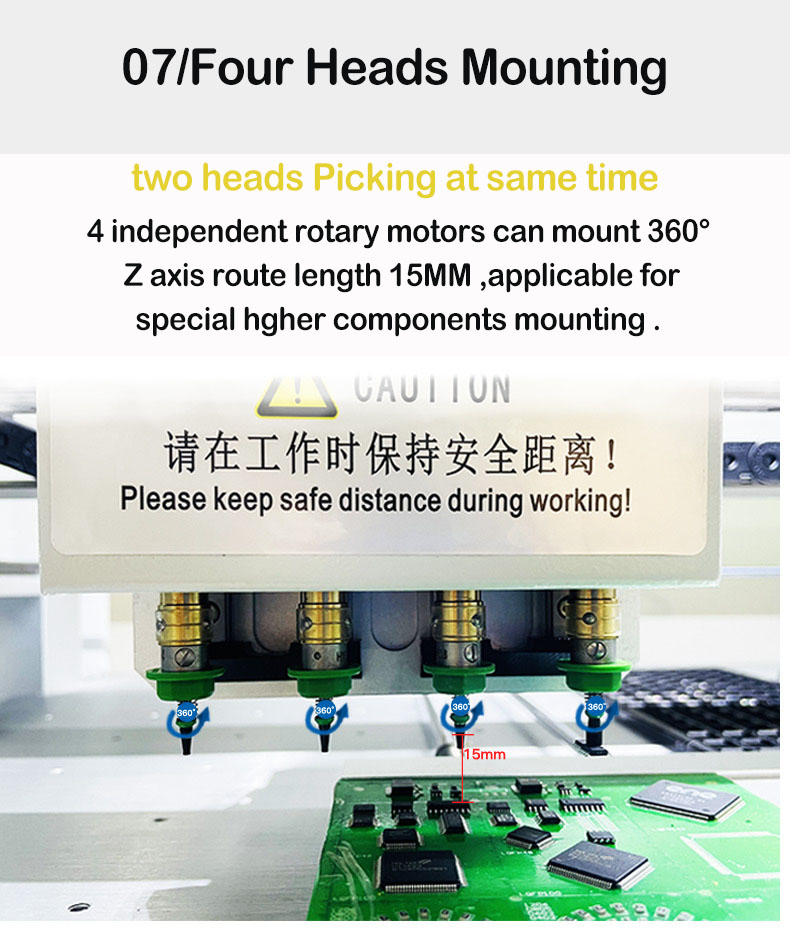

Mounting Head Quantity	4
Mounting Speed	8000cph (optimal without vision detection); 5500cph (optimal with vision detection)
Control Accuracy	0.015mm
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～400mm(L)×290mm(W)
Weight	140kg

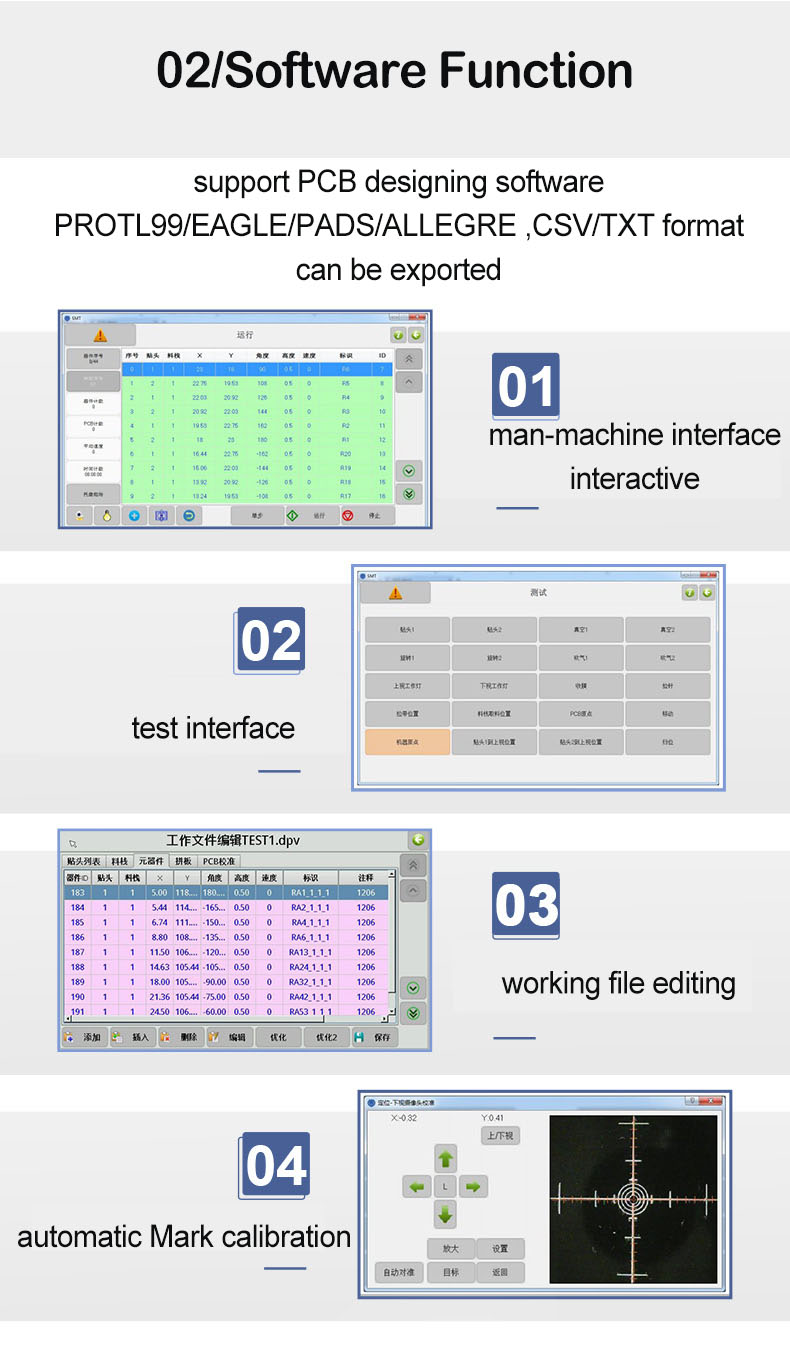

Control System	Built-in computer (embedded Linux operating system), 7-inch touch screen
Transmission System	Synchronous belt + linear guide
Drive System	X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration

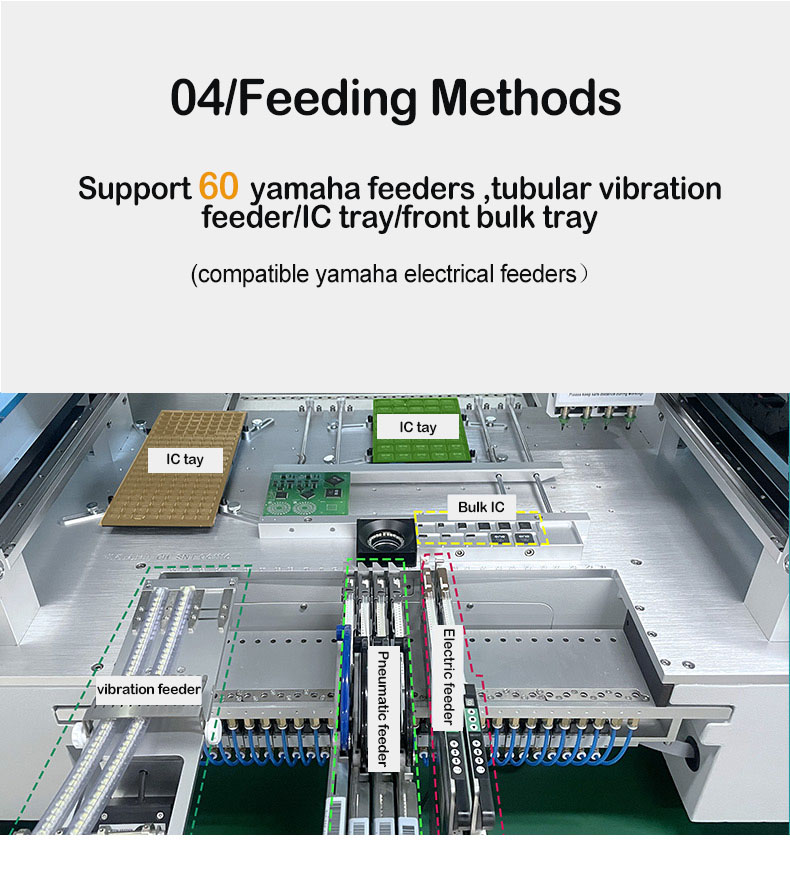

Feeding System	60 Yamaha standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported

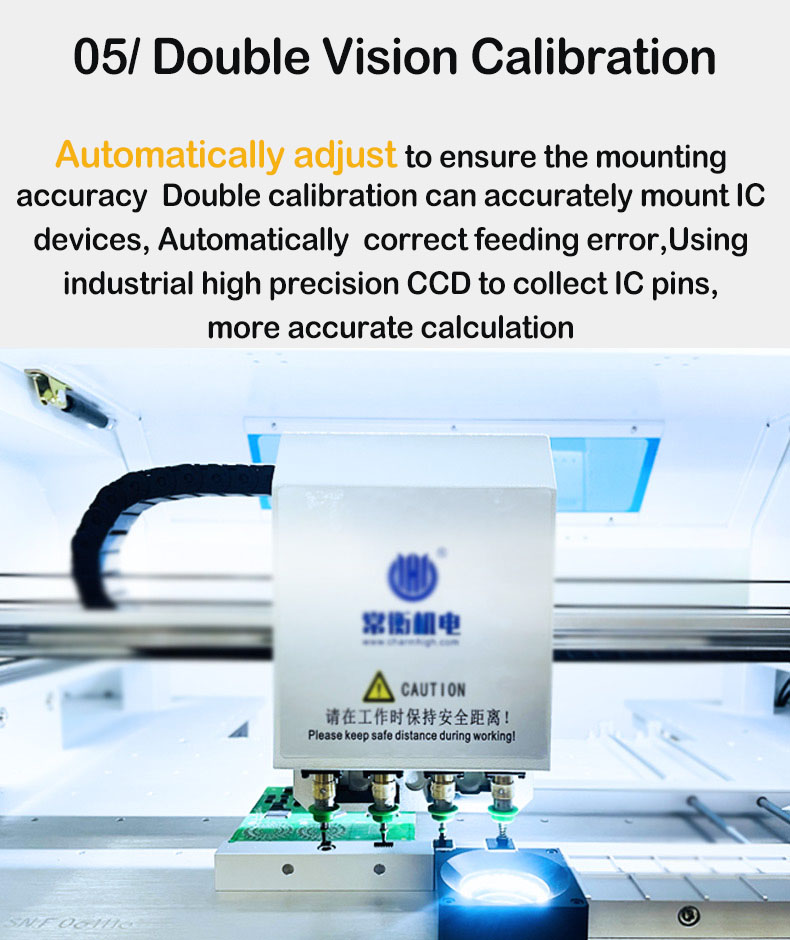

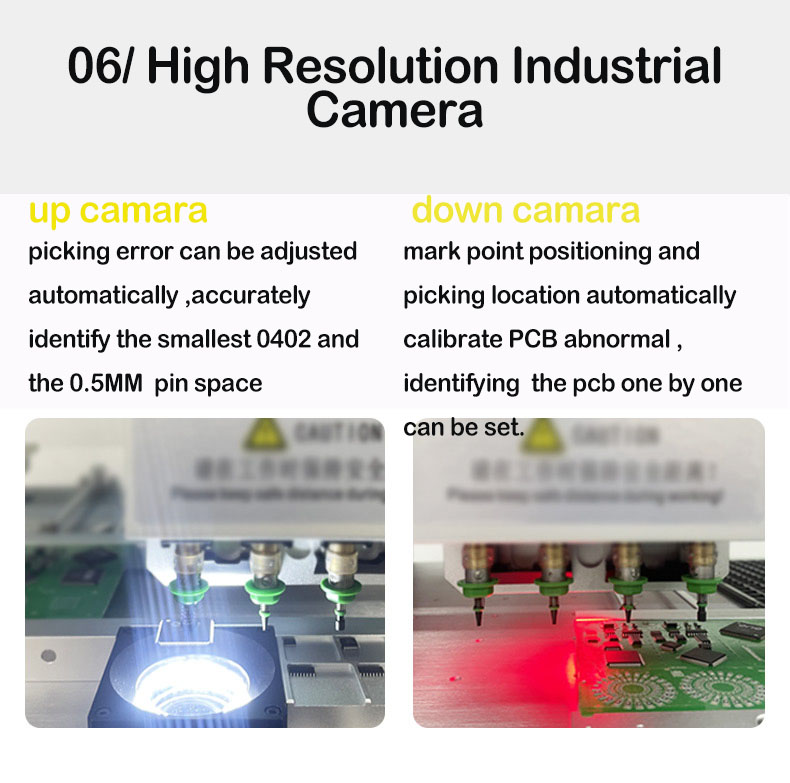

Vision System	Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); Down-looking camera for PCB automatic calibration via Mark Point and component positioning

Product Description

Charmhigh SMD Mounting Pick And Place PCB Assembly AC220V / AC110V

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

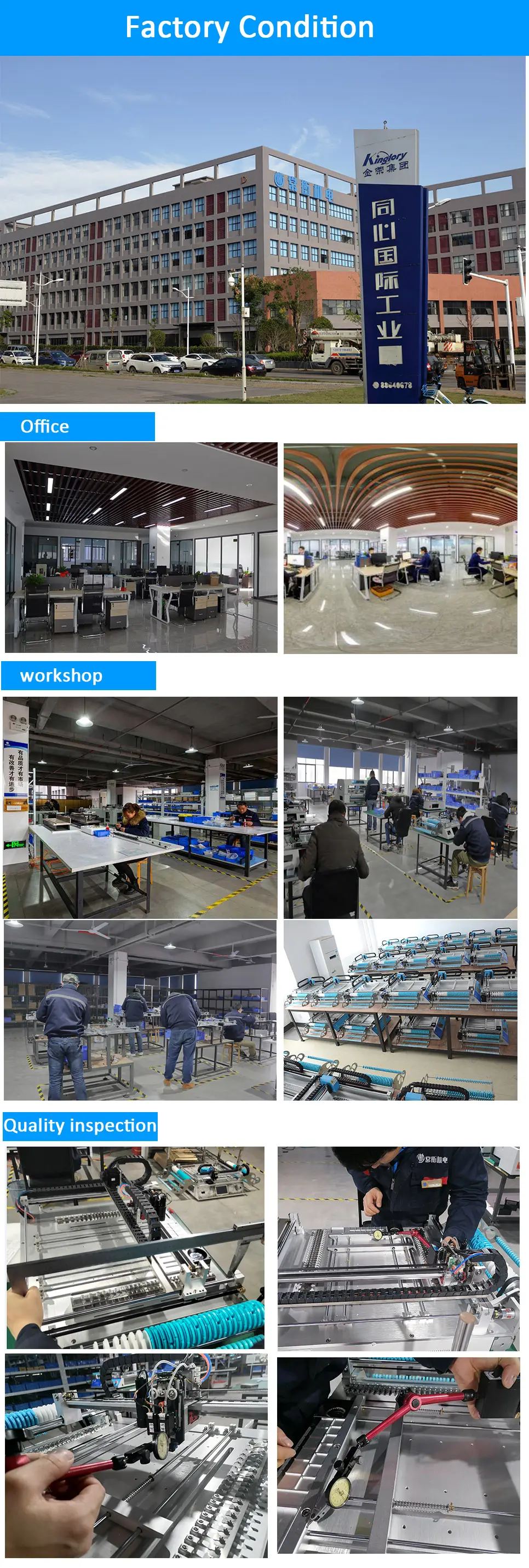

Company Profile

Hunan Charmhigh Electromechanical Equipment Co., Ltd. is the well-known manufacturer of high-end SMT equipment in China. The company is located in the Changsha High-tech Development Zone, covering a total area of 3,600 square meters.
As a professional modern science and technology enterprise capable of both R&D, production and marketing, Hunan Charmhigh Electromechanical Equipment Co., Ltd. has become the benchmark of the SMT industry in China. With the development of more than twelve years, Charmhigh has already turned into the leading brand of China high-end SMT machine.
Specifically, the high-quality services of our company can be seen at three stages: before-sales services, in-sales services, and after-sales services.
1. Before-sales Services:
Our salespersons always professionally, patiently, and sincerely introduce, recommend, and demonstrate different model of machines for our customers so that the customers could choose the most suitable one in terms of their budget and practical production needs.
2. In-sales Services:
This kind of services include providing customers with one-stop SMT solutions, overall and detailed quotation, clear and standard contract. During the whole process, our salespersons will actively communicate with the customers as to every aspect of the deal. As a result, our customers feel really happy and reassured about their purchase of our products.

FAQ

1. who are we?
 We are based in Hunan, China, start from 2009,sell to Domestic Market(45.00%),North America(10.00%),Southeast Asia(8.00%),Western Europe(8.00%),South America(7.00%),Oceania(4.00%),South Asia(4.00%),Eastern Asia(3.00%),Northern Europe(3.00%),Africa(2.00%),Central America(2.00%),Southern Europe(2.00%),Eastern Europe(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3. what can you buy from us?

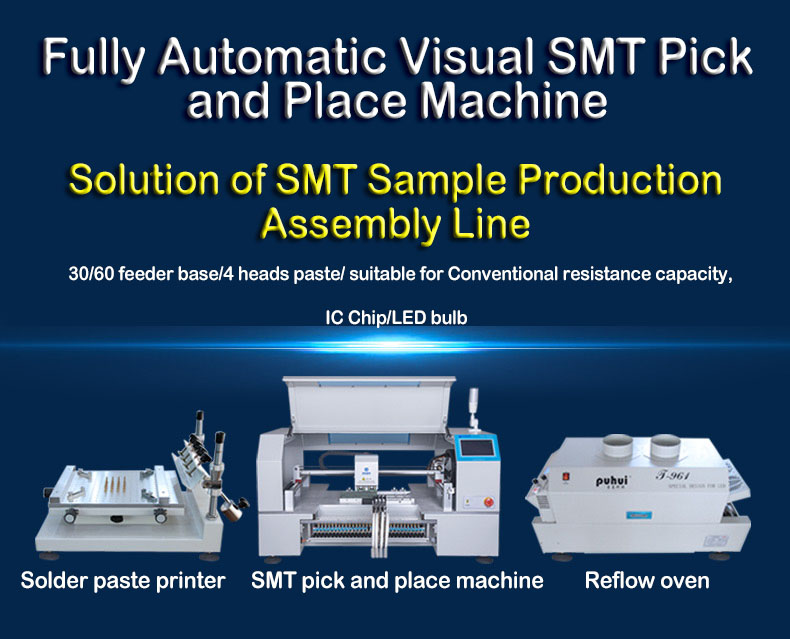

 pick and place machine,smt production line,stencil printer,reflow oven,cnc machine

 4. why should you buy from us not from other suppliers?
 Hunan Charmhigh Electromechanical Equipment Co., Ltd. has been a modern science and technology enterprise fully capable of research&development, manufacturing, and marketing of pick and place machine as well as SMT peripheral equipment for over 12 years.

 5. what services can we provide?
 Accepted Delivery Terms: FOB,EXW；
 Accepted Payment Currency:USD,CNY;
 Accepted Payment Type: T/T,Credit Card,Cash;
 Language Spoken:English,Chinese
