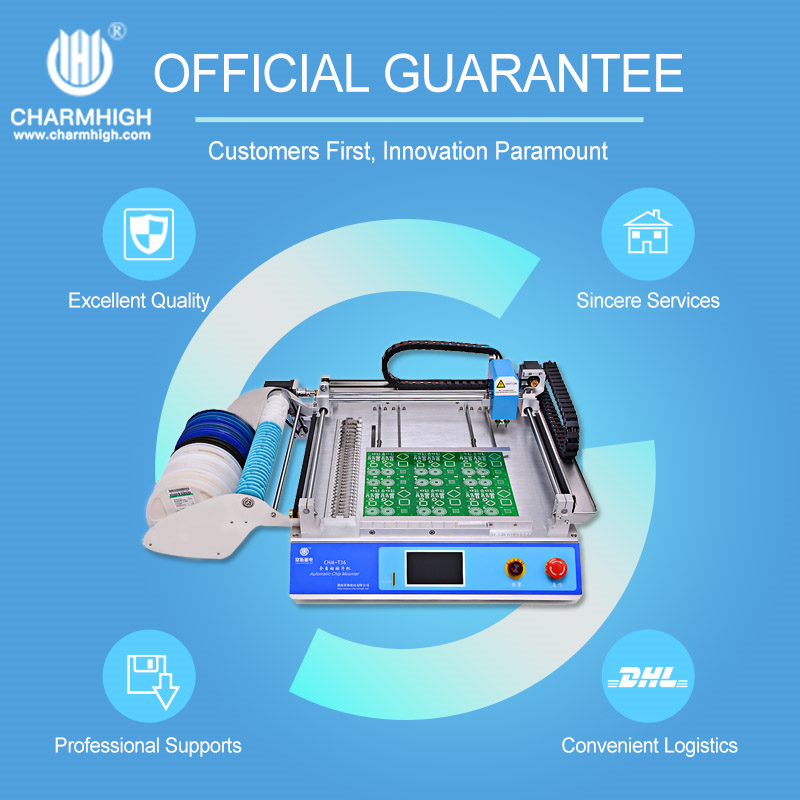

Best Quality Cheap Cost Two-Head Desktop CHM-T36 Smt Pick And Place Machine
Charmhigh CHM-T36 is desktop automatic pick and place machine especially developed for research laboratories and small medium manufacturing enterprises even if it is also be suitable for the serious hobbyist. This automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
Specification
| Dimensions | 930mm(L)×690mm(W)×310mm(H) |
| Weight | 37kg |
| Power Supply | AC220V (50Hz, single phase) / AC110V (60Hz, single phase); 250W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph (optimal) |
| Control Accuracy | 0.025mm |
| Component Type | 0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×410mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Embedded real-time operating system, 5-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt + polished rod |
| Feeding System | 29 tape feeding stacks (8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 8 preset general IC stacks, work surface custom IC trays supported |
| Positioning Mode | Laser positioning |
Packing & Delivery
Clients & Certificates
Our Services
1. Before-sales Services
Our salespersons always professionally, patiently, and sincerely introduce, recommend, and demonstrate different model of machines for our customers, so that the customers could choose the most suitable one in terms of their budget and practical production needs.
2. In-sales Services
This kind of services include providing customers with one-stop SMT solutions, overall and detailed quotation, clear and
standard contract. During the whole process, our salespersons will actively communicate with the customers as to every aspect of the deal. As a result, our customers feel really happy and reassured about their purchase of our products.
3. After-sales Services
After-sales services refers to the provision of training and guidance for our customers to operate the newly-purchased machines, the maintenance of the machines in use, and the updating of the software as well as firmware. While enjoying our wholehearted after-sales supports, our customers unanimously express that they are greatly satisfied with the products and services provided by Hunan Charmhigh Electromechanical Equipment Co., Ltd.
IF YOU WANT TO GET MORE DETAILS OF OUR SERVICES & PRODUCTS,
CLICK ON THE URL:www.charmhigh.com.
Any questions, please contact us.
We will respond you at the first time!
