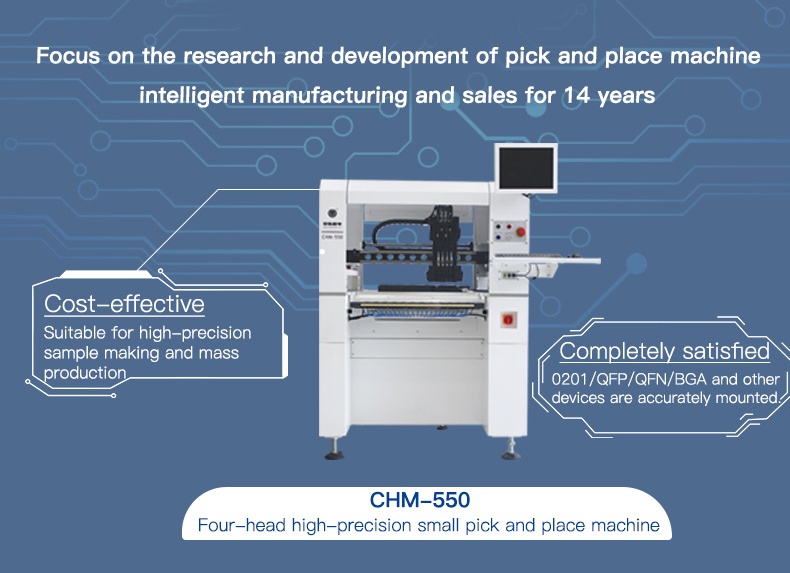

Charmhigh CHM-550 Auto Nozzle Changer Mini Smt Electronic Device Pick And Place Machine
Why choose Charmhigh?
The self-developed vision system adopts combined light sources for clearer recognition. High frame rate synchronously recognizes 14*14mm components, high-definition IC camera can identify BGA, QFP, QFN, and other 25*25mm components, and cooperates with sophisticated algorithms to automatically compensate for picking deviations to achieve high-precision placement.
The production line involves a wide range of application fields and is used in various industries
https://youtu.be/aJbOOIobP5A
About Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/UAkW3-szWOs
CHM-36VA of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/VO0ElxOfzDs
CHM-T48VA of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/qM9ygtwcSrk
CHM-T48VB of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/bwF2IB5wsbk
CHM-T510LP4 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/1B2fvD8cVnk
CHM-T530P4 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/Y1f0x5NX3dY
CHM-T560P4 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/8EaeZxsTB6Q
CHM-860 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
https://youtu.be/nhidK_omXPw
CHM-861 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
| CHM-550 Specifications |
| Dimensions | 980mm(L)X 1050mm(W) X 880mm(HD) |
| Weight | 190kg |
| Power Supply | AC220V (50Hz,single phase) 600W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator (Japan PISCO) |
| Mounting Head Quantity | 4 |
| Mounting Speed | 6500cph ( Visual inspection) IPC9850: 5000CPH |
| Mounting Accuracy | ±60μm@μ±3σ/chip CPK≥1.0(XY) |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| Nozzle Change | Automatic nozzle change (13 hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×4 (component size applicable: 14mm×14mm); IC camera×1 (component size applicable: 25mm×25mm); Mark camera×2 |
FAQ
1. Q: How many nozzles do you supply? Do you sell nozzles and spares?
A: The CHM-T36VA has two nozzle-heads, we supply 4 nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.
2. Q: Do you provide software updates?
A: Customers who buy our machines, we can offer free upgrades software for you.
3. Q: What air supply is required?
A: Oil free compressor and air dryer be used.
4. Do you use electromagnetic coil to control the pulling needles? What are the advantages if comparing to cylinder control?
Yes, the drawing needle we use is controlled by the electromagnetic coil. Comparing with the cylinder control, the electromagnetic coil control has the characteristics of faster response, softer force and less noise. The quick reaction can speed up the mounting speed; Soft strength refers to the strength of the pull needle is soft when pressing down, and the pull needle is not easy to break.
