Charmhigh CHM-T560P4 SMT Led Placement Machine Mounting Equipment Place
CHM-T560P4 main features
1. Model number: CHM-T560P4
2. main configuration: type of desktop + 4-head 60 feeders + built-in pc + built-in linux system embedded + closed circuit control engine with coded + Up-looking and down looking cameras + linear track + automatic calibrate pcb + touch-sensitive screen
3. feeder: 2 options: yamaha cl feeder/electric feeder (feeders buy separately)
4. PCB clamping area: 400*290mm
5. Component: 0402-5050, led, sot, sop, qfn, bga... etc.
Choosing the Best Machine According to Your Needs
Here are the most important things you should consider before buying a system.
Prices and Costs
Charmhigh offers PCB pick and place machines in the range of $2,000-$31,000. Considering the current market and the provided features, we believe that these prices are extremely cheap.
Performance and Usability
Tedious and repetitive work made by human hand requires too much hassle, time and money. It's time for a change. Improve your productivity and leave all the manual work on professional machines that will easily surpass any human applications.
The SMD machines provided by Charmhigh aren’t just low-cost, they also offer more performance and are easier to maintain compared to other machines. The intuitive interface makes the entire system easy to use, providing a professional experience for every user. You'll no longer have to spend a fortune on costly out-sourced, third-party assembly services.
Specifications

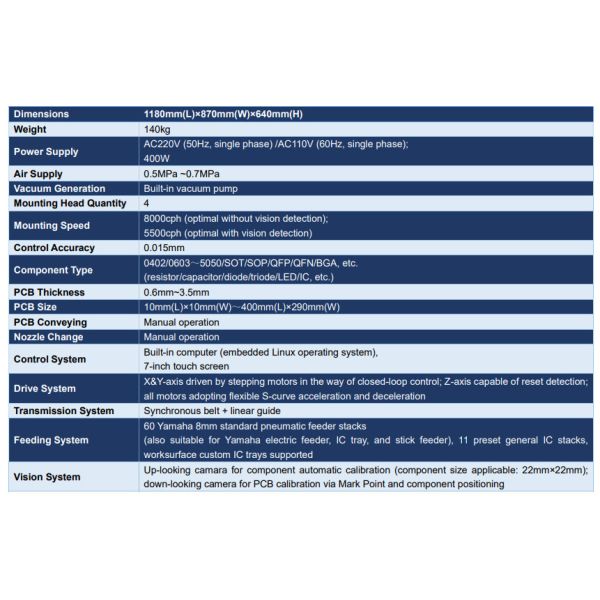

| CHM-T560P4 Specifications |
| Dimensions | 1180mm(L)×870mm(W)×640mm(H) |
| Weight | 140kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase);
400W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 8000cph(optimal without vision detection);
5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×290mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system),
7-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Feeding System | 60 Yamaha 8mm standard pneumatic feeder stacks
(also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Our Service
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
