CHM-T560P4 Automatic Auto Nozzle Changer Pcb Assembly Samsung Smt Pick And Place Machine Ict

Product Categories

HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.

Contact Now

Name: CHMT560P4 Automatic Auto Nozzle Changer Pcb Assembly Samsung Smt Pick And Place Machine Ict
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : CHM-T560P4

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 units per month

Delivery Time : 15 works

Packaging Details : wooden box

Vacuum Generation : Built-in vacuum pump

Mounting Head Quantity : 4

Control Accuracy : 0.015mm

PCB Thickness : 0.6mm~3.5mm

PCB Conveying : Manual operation

Contact Now

CHM-T560P4 Automatic Auto Nozzle Changer Pcb Assembly Samsung Smt Pick And Place Machine Ict

Dimensions	1180mm(L)×870mm(W)×640mm(H)
Weight	140kg
Power Supply	AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 400W
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	4
Mounting Speed	8000cph(optimal without vision detection); 5500cph (optimal with vision detection)
Control Accuracy	0.015mm

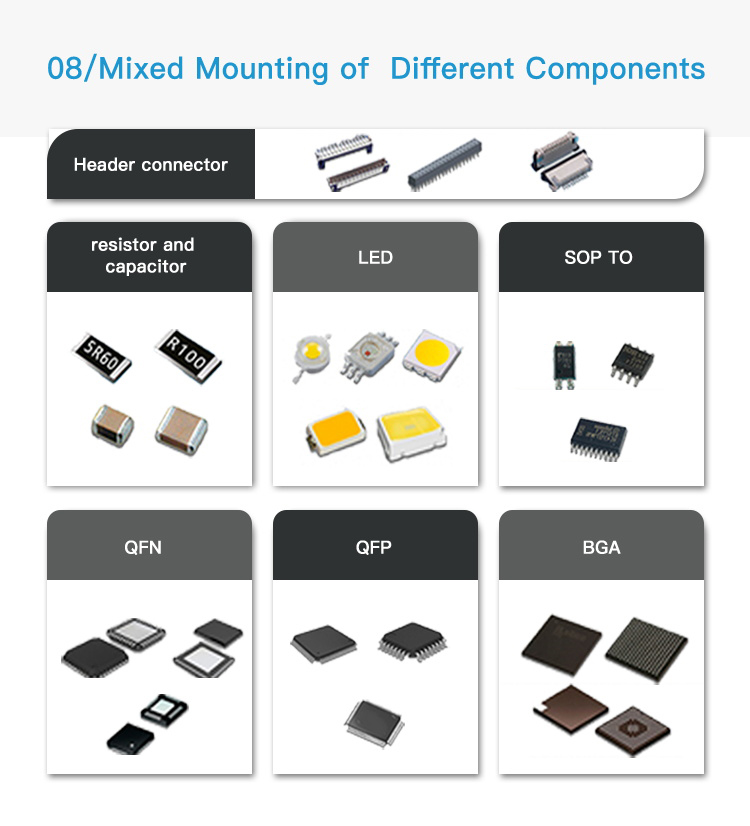

Component Type	0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm

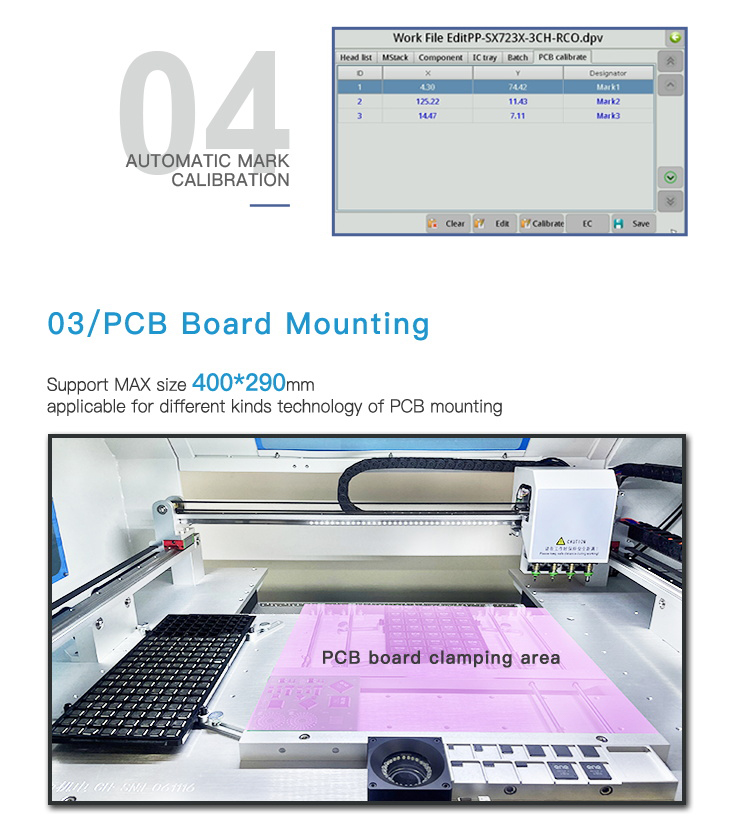

PCB Size	10mm(L)×10mm(W)～400mm(L)×290mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation

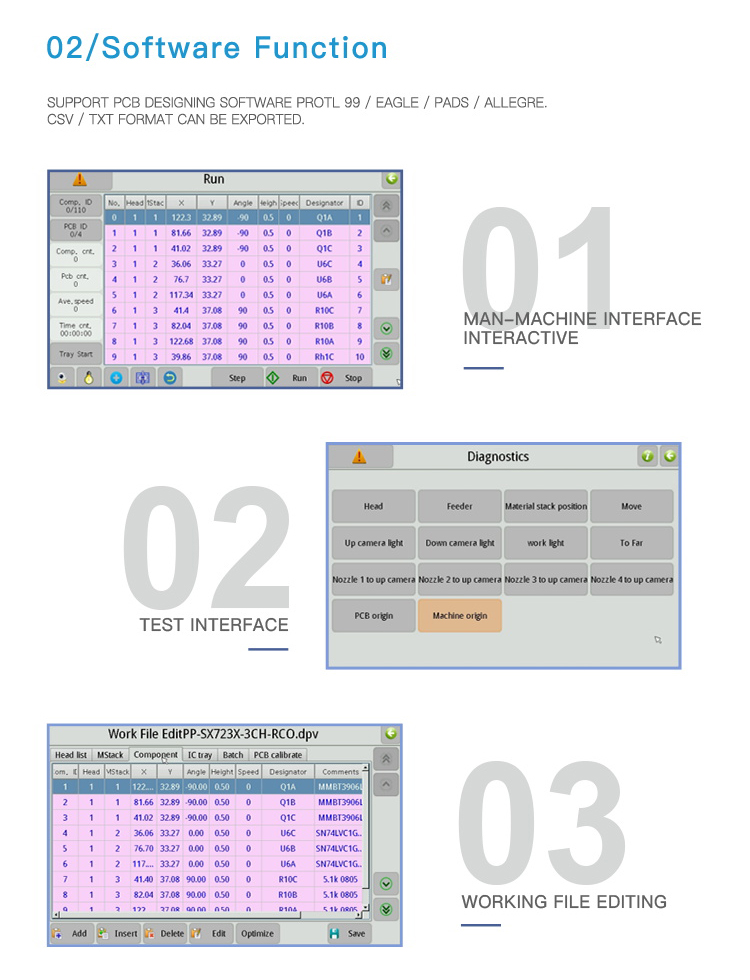

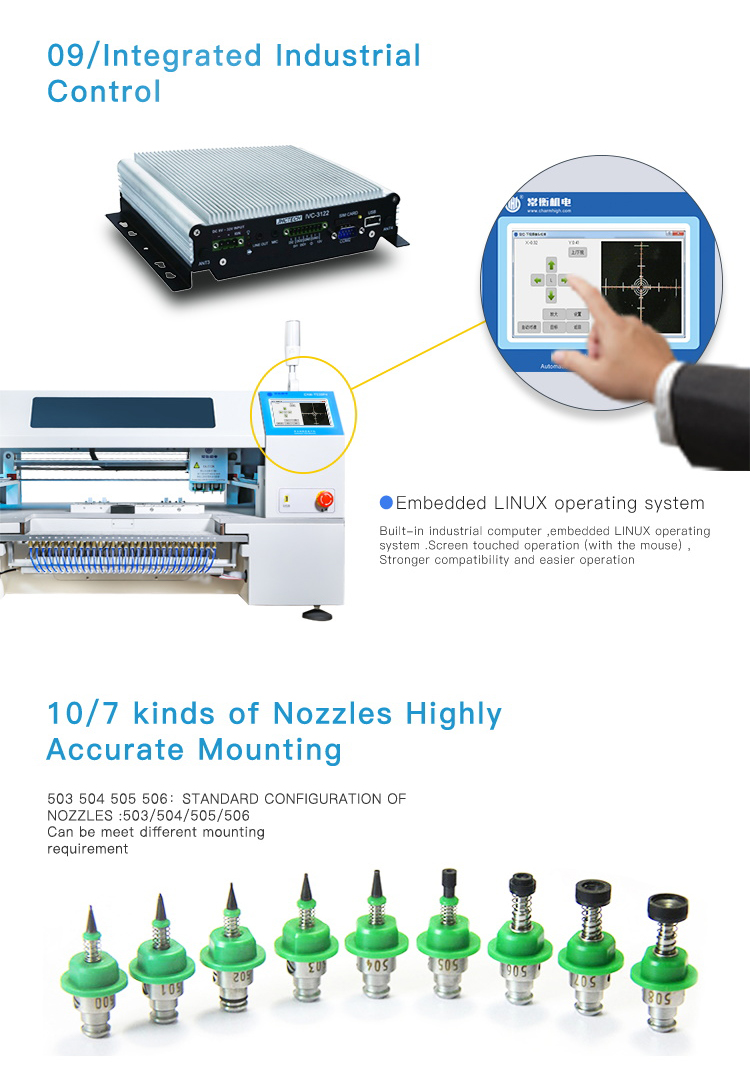

Control System	Built-in computer (embedded Linux operating system), 7-inch touch screen

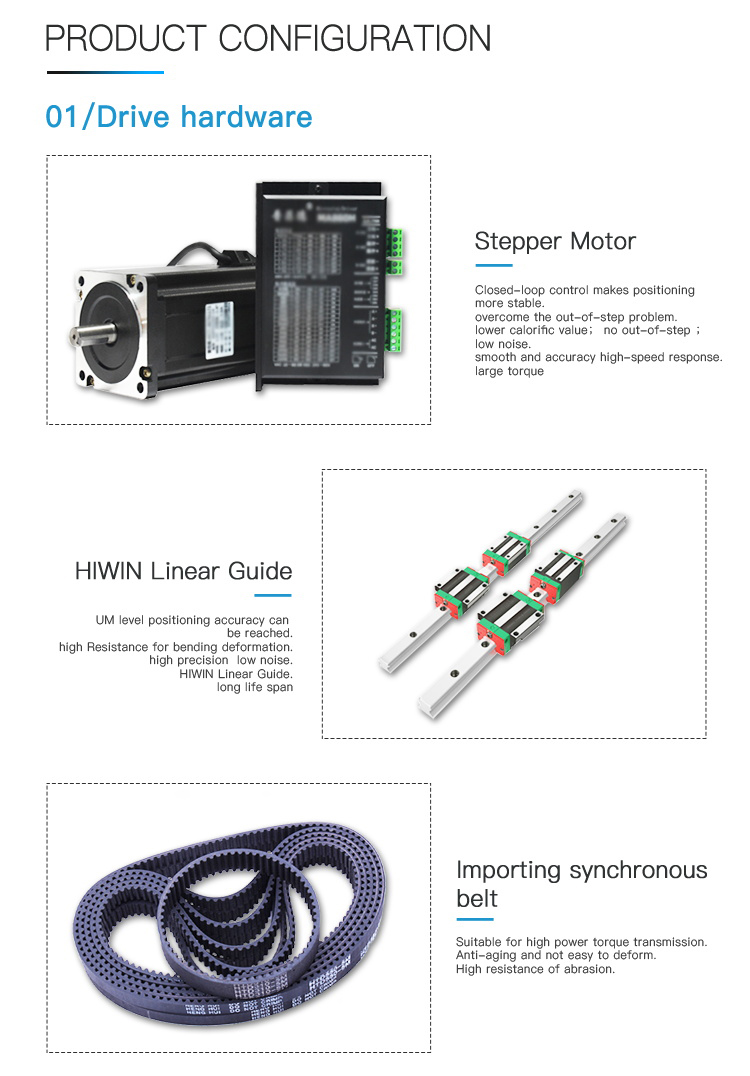

Drive System	X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration
Transmission System	Synchronous belt + linear guide
Feeding System	60 Yamaha 8mm standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, work surface custom IC trays supported
Vision System	Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning
