Small Sized High Speed Feeder Smt Manual Pick And Place Machine Manufacturers

Name: Small Sized High Speed Feeder Smt Manual Pick And Place Machine Manufacturers
Brand: Charmhigh
Price: 1 USD

China Small Sized High Speed Feeder Smt Manual Pick And Place Machine Manufacturers wholesale

Brand Name : Charmhigh

Model Number : CHM-T36

Certification : CE、FCC、SGC、ISO

Place of Origin : China

MOQ : 1 set

Price : Price Negotiable

Payment Terms : T/T

Supply Ability : 20 set a month

Delivery Time : 15 work days

Packaging Details : Wooden packing

Dimensions : 930mm(L)×690mm(W)×310mm(H)

Mounting Head Quantity : 2

Mounting Speed : 000cph (optimal)

PCB Size : 10mm(L)×10mm(W)～345mm(L)×410mm(W)

Control System : Embedded real-time operating system, 5-inch touch screen

Drive System : X&Y-axis driven by stepping motors; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported

Positioning Mode : Laser positioning

Contact Now

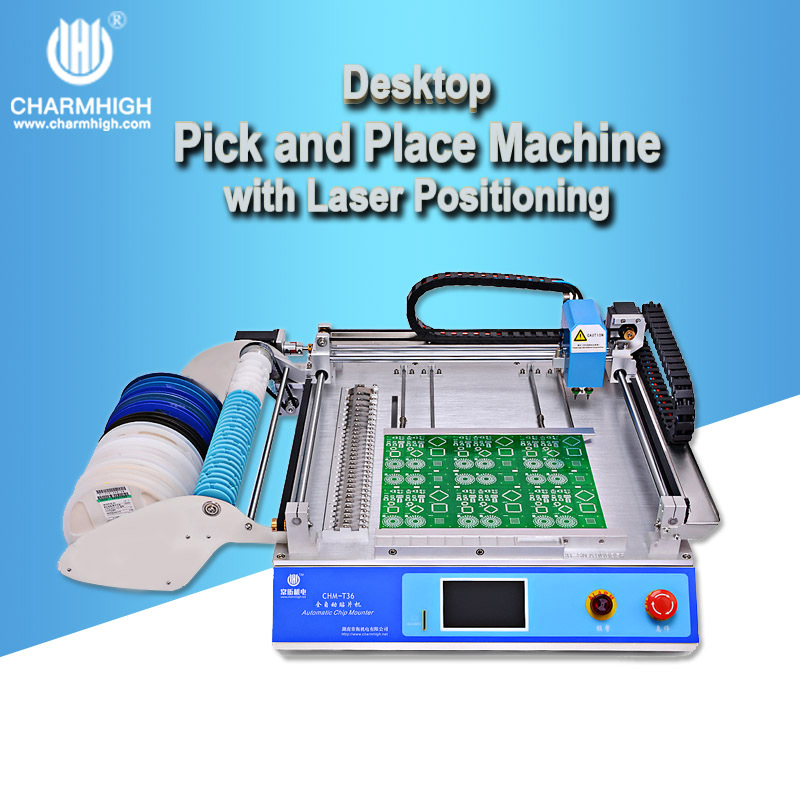

Small Sized High Speed Feeder Smt Manual Pick And Place Machine Manufacturers

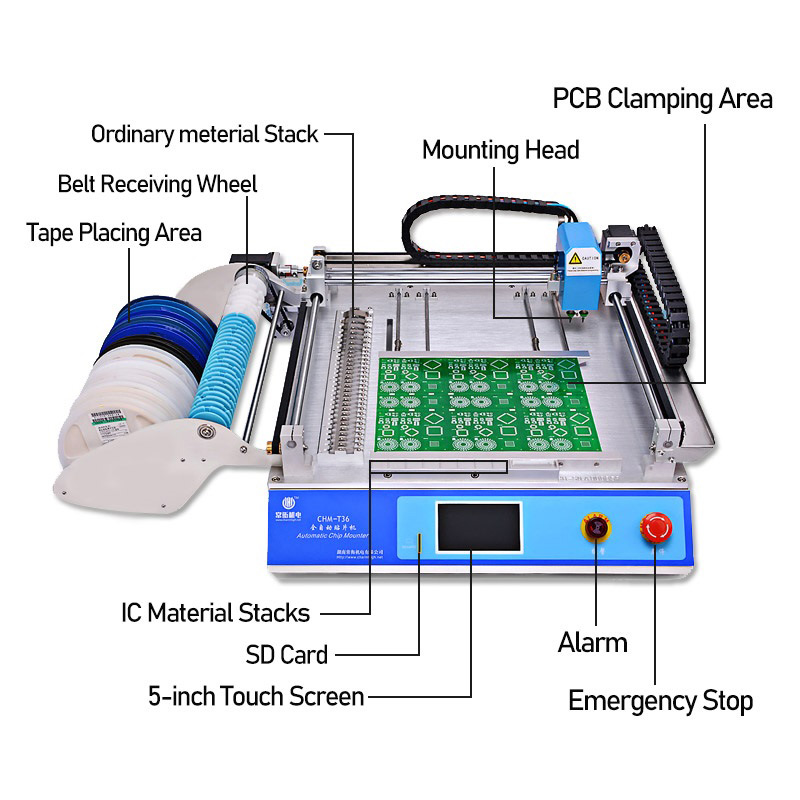

Small Sized High Speed Feeder Smt Manual Pick And Place Machine Manufacturers

CHM-T36 Specifications
Dimensions	930mm(L)×690mm(W)×310mm(H)
Weight	37kg
Power Supply	AC220V (50Hz, single phase) / AC110V (60Hz, single phase); 250W
Air Supply	No external air supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	2
Mounting Speed	6000cph (optimal)
Control Accuracy	0.025mm
Component Type	0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～345mm(L)×410mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation
Control System	Embedded real-time operating system, 5-inch touch screen
Drive System	X&Y-axis driven by stepping motors; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission System	Synchronous belt + polished rod
Feeding System	29 tape feeding stacks (8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 8 preset general IC stacks, work surface custom IC trays supported
Positioning Mode	Laser positioning

Small Sized High Speed Feeder Smt Manual Pick And Place Machine Manufacturers

FAQ:

Q:Does your machines have quality certificate?

A:Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights, and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.

Q:The Warranty of the machine?

A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?

A:Yes
