High Speed Charmhigh CHM-750 Led Making Smt Pick And Place Type Carton Packer Machine

Name: High Speed Charmhigh CHM750 Led Making Smt Pick And Place Type Carton Packer Machine
Brand: Charmhigh
Price: 1 USD

China High Speed Charmhigh CHM-750 Led Making Smt Pick And Place Type Carton Packer Machine wholesale

Brand Name : Charmhigh

Model Number : CHM-750

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets per month

Delivery Time : 15 work days

Packaging Details : wooden box

Control System : Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse

Positioning Mode : Laser positioning

PCB Conveying Nozzle Change : 3-section-rail automatic conveying

12mm Component Height : 12mm

stock quantity : In stock

Contact Now

High Speed Charmhigh CHM-750 Led Making Smt Pick And Place Type Carton Packer Machine

CHM-750 Specifications
Dimensions	1280mm(L)×1190mm(W)×1470mm(H)
Weight	520kg
Power Supply	AC220V (50Hz, single phase), 2.8kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Vacuum generator
Mounting Head Quantity	6
Mounting Speed	17000cph (optimal)
Mounting Accuracy	±50μm@μ±3σ/chip
Control Accuracy	5μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	400mm(L)×350mm(W)
PCB Conveying	3-section-rail automatic conveying
Nozzle Change	Automatic nozzle change (19-hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	Ball screw + linear guide (Y axis with double screws)
Feeding System	50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2

High Speed Charmhigh CHM-750 Led Making Smt Pick And Place Type Carton Packer Machine
FAQ:
Q:Howtohelp
A:We have our sales engineer and a patient service team, they will help you for what
youwanttodoandwhatyouneededfromusPleasecontactasbelowinformation

Q: What kind of maintenance is needed?

A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we

will support this oil)

Q: Why choose you?

A: Leading SMT Supplier in China; Professional Supplier on Alibaba; Professional after-sales service team

Q:Is it hard to use these machines?

A: No, not hard at all For our previous clients, just about 2 days for learning operation

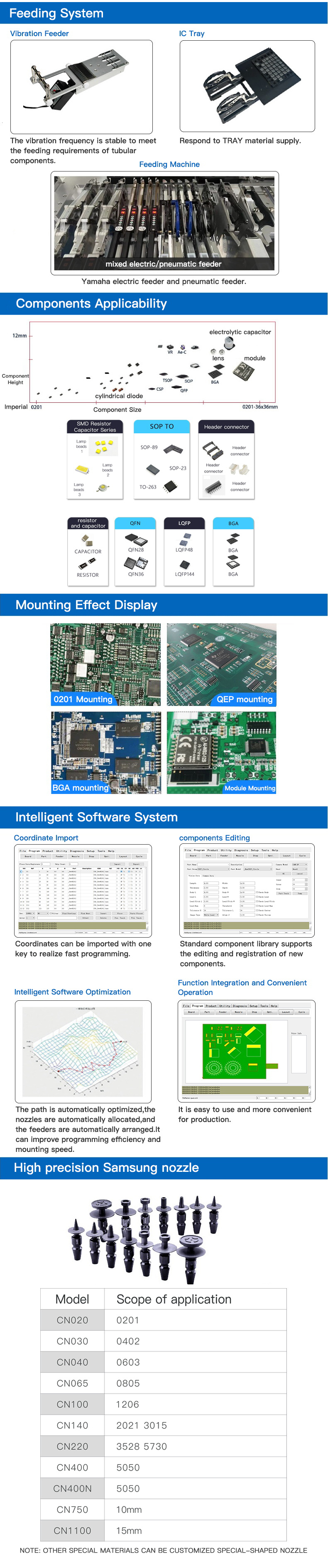

High Speed Charmhigh CHM-750 Led Making Smt Pick And Place Type Carton Packer Machine Images
