High speed precision 2 head table top pick and place machine smt placement CHM-T36VB

Product Categories

HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.

Contact Now

Name: High speed precision 2 head table top pick and place machine smt placement CHMT36VB
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : CHM-T36VB

Certification : CE、FCC、SGC、ISO

Place of Origin : China

MOQ : 1 set

Price : Price Negotiable

Payment Terms : T/T

Supply Ability : 20 set a month

Delivery Time : 15 work days

Packaging Details : Wooden packing

Dimensions : 1310mm(L)×710mm(W)×340mm(H)

Weight : 50kg

Power Supply : AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W

Air Supply : No external air supply required

Vacuum Generation : Built-in vacuum pump

Mounting Head Quantity : 2

Mounting Speed : 6000cph(optimal without vision detection); 4000cph (optimal with vision detection)

Control Accuracy : 0.025mm

Component Type : 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)

Contact Now

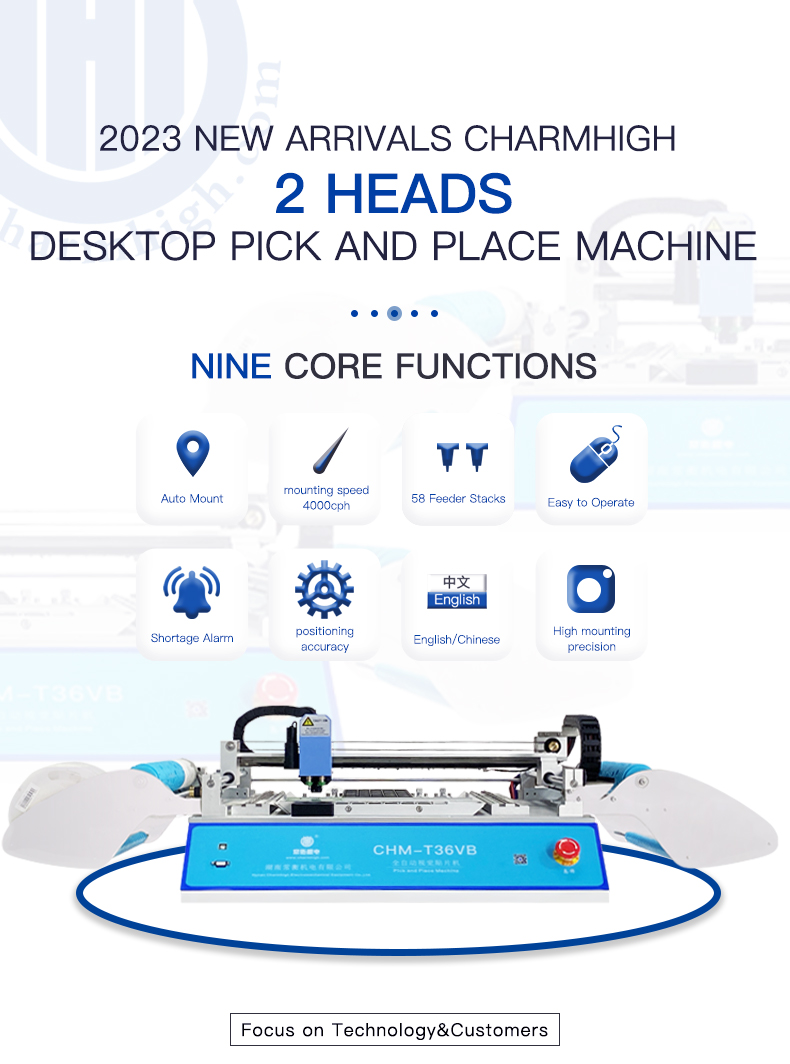

High speed precision 2 head table top pick and place machine smt placement CHM-T36VB

CHM-T36VB Specifications
Dimensions	1310mm(L)×710mm(W)×340mm(H)
Weight	50kg
Power Supply	AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W
Air Supply	No external air supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	2
Mounting Speed	6000cph(optimal without vision detection); 4000cph (optimal with vision detection)
Control Accuracy	0.025mm
Component Type	0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～345mm(L)×360mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation

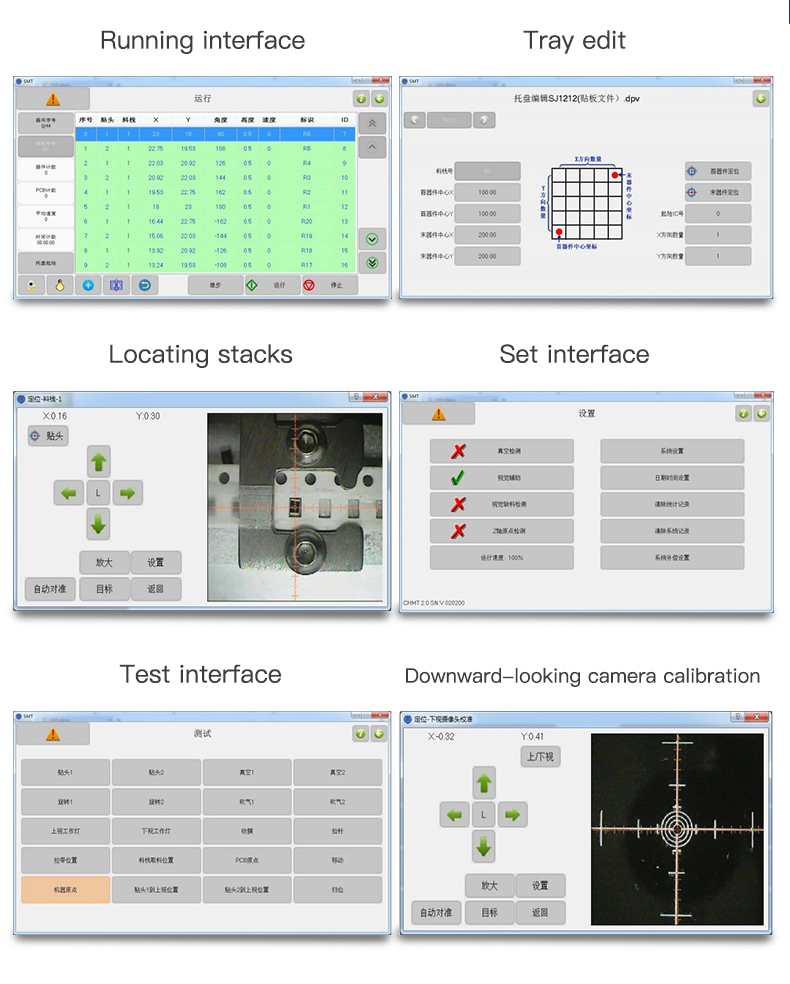

Control System	External computer required (Windows)
Drive System	X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission System	Synchronous belt+polished rod+Linear Guides
Feeding System	58 tape feeding stacks(8mm:44,12mm:8,16mm:4,24mm:2；customization supported), 14 preset general IC stacks, work surface custom IC trays and stick feeder supported

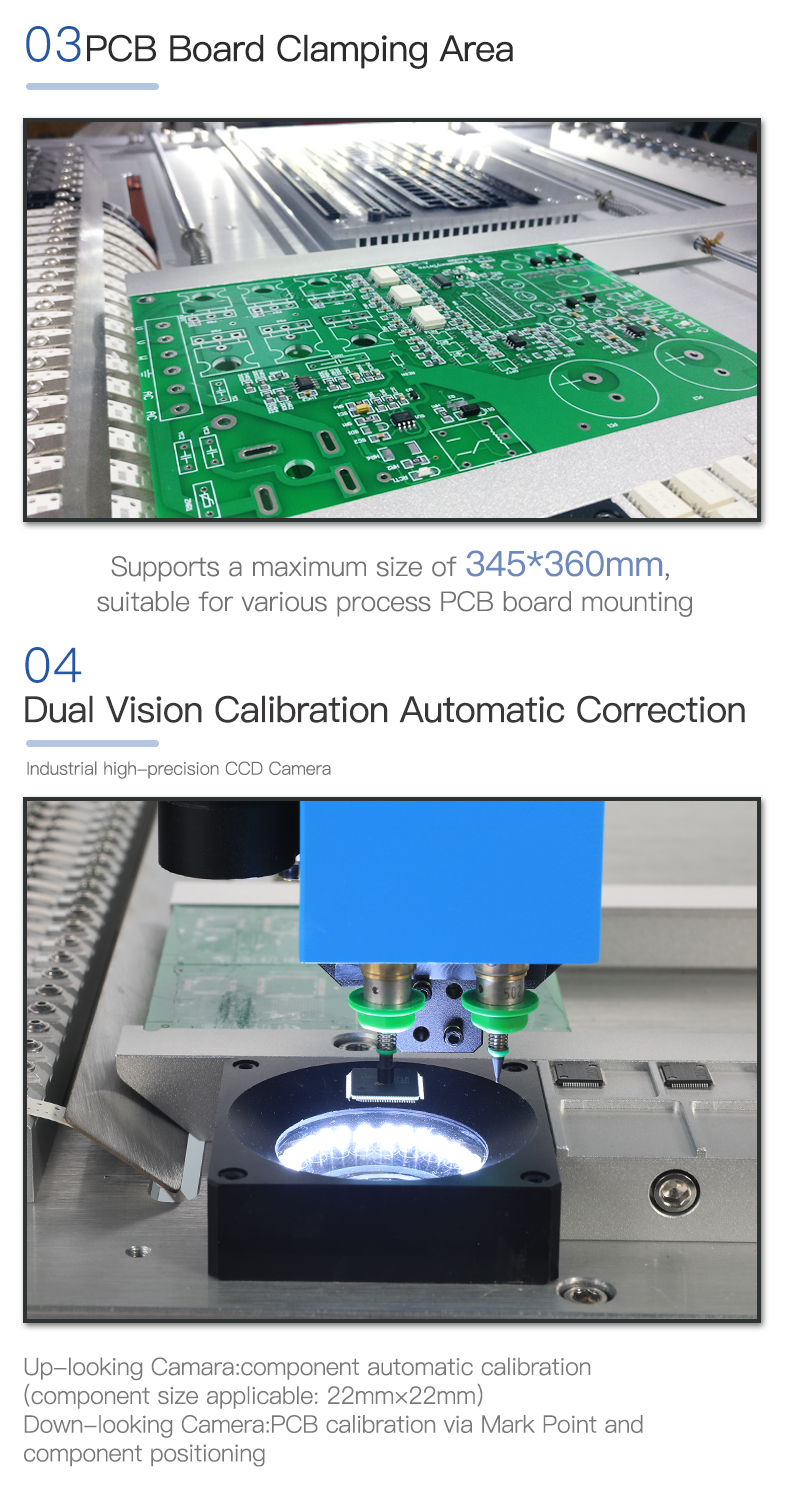

Vision System	Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning
