10 Mounting Head Precision Pick And Place Machine For 0.6mm-3.5mm PCB Thickness

Name: 10 Mounting Head Precision Pick And Place Machine For 06mm35mm PCB Thickness
Brand: Charmhigh
Price: 1 USD

China 10 Mounting Head Precision Pick And Place Machine For 0.6mm-3.5mm PCB Thickness wholesale

Brand Name : Charmhigh

Model Number : TS10

Place of Origin : China

Certification : CE、FCC、SGC、ISO

MOQ : 1 set

Price : Price Negotiable

Payment Terms : T/T

Supply Ability : 20 set a month

Delivery Time : 15 work days

Feeding System : 100 NXT 8mm Standard Feeder Stacks

Weight : 1930kg

Vacuum Generation : Built-in Vacuum Pump

Control System : Built-in Industrial Computer (Windows 7)

Power Supply : AC380V

Mounting Speed : 42000cph (optimal)

PCB Thickness : 0.6mm~3.5mm

Mounting Head Quantity : 10

Contact Now

10 Mounting Head Precision Pick And Place Machine Ideal For 0.6mm-3.5mm PCB Thickness

10 Mounting Head Precision Pick And Place Machine For 0.6mm-3.5mm PCB Thickness

Technical Parameters:

Property	Value
PCB Thickness	0.6mm~3.5mm
Vacuum Generation	Built-in Vacuum Pump
Mounting Speed	42000cph (optimal)
Weight	1930kg
Feeding System	100 NXT 8mm Standard Feeder Stacks
Control System	Built-in Industrial Computer (Windows 7)
Mounting Head Quantity	10
Power Supply	AC380V

Applications:

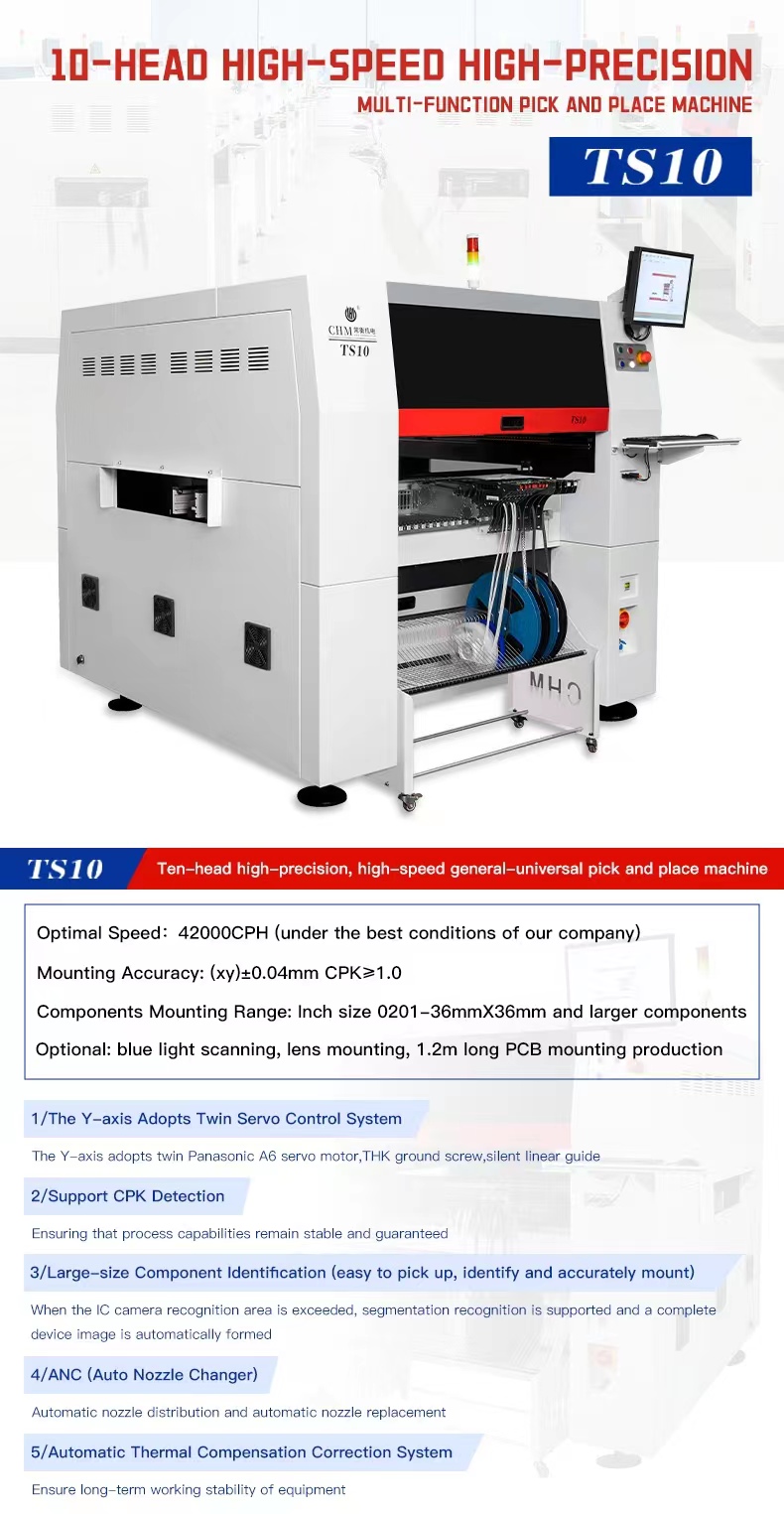

Charmhigh TS10 Precision Pick and Place Machine is an industry-leading electronic component placement machine designed for high-precision assembly of printed circuit boards. Featuring 10 mounting heads and a mounting speed of up to 42,000 cph (optimal), the machine can handle a wide range of PCB thicknesses from 0.6mm to 3.5mm, allowing for efficient and accurate assembly of components. The machine is powered by AC380V and is equipped with a built-in industrial computer running on Windows 7, making it a reliable and user-friendly device for all kinds of assembly tasks.

The Charmhigh TS10 Precision Pick and Place Machine is ideal for assembling printed circuit boards with high precision and accuracy. It can be used in a wide variety of applications, such as automotive, consumer electronics, industrial automation, medical, and aerospace. The machine is designed to ensure high-quality and reliable assembly of components, as well as a high throughput rate, making it an ideal choice for both large-scale and small-scale PCB assembly operations.
