| TM08 Specifications |
| Dimensions | 1280mm(L)×1580mm(W)×1500mm(H) |
| Weight | 1450kg |
| Power Supply | AC220V (50Hz, single phase), 3.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 8 |
| Mounting Speed | 35000cph (optimal) |

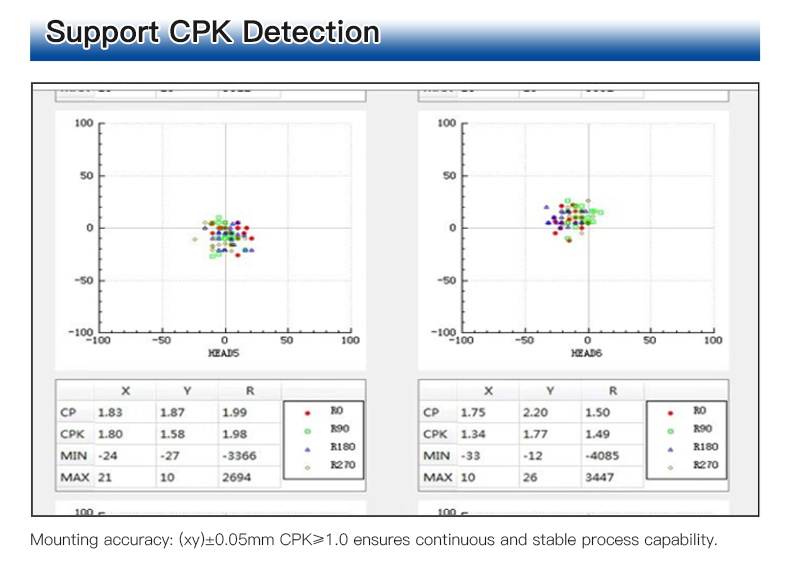

| Mounting Accuracy | (XY)±50μm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 01005/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |

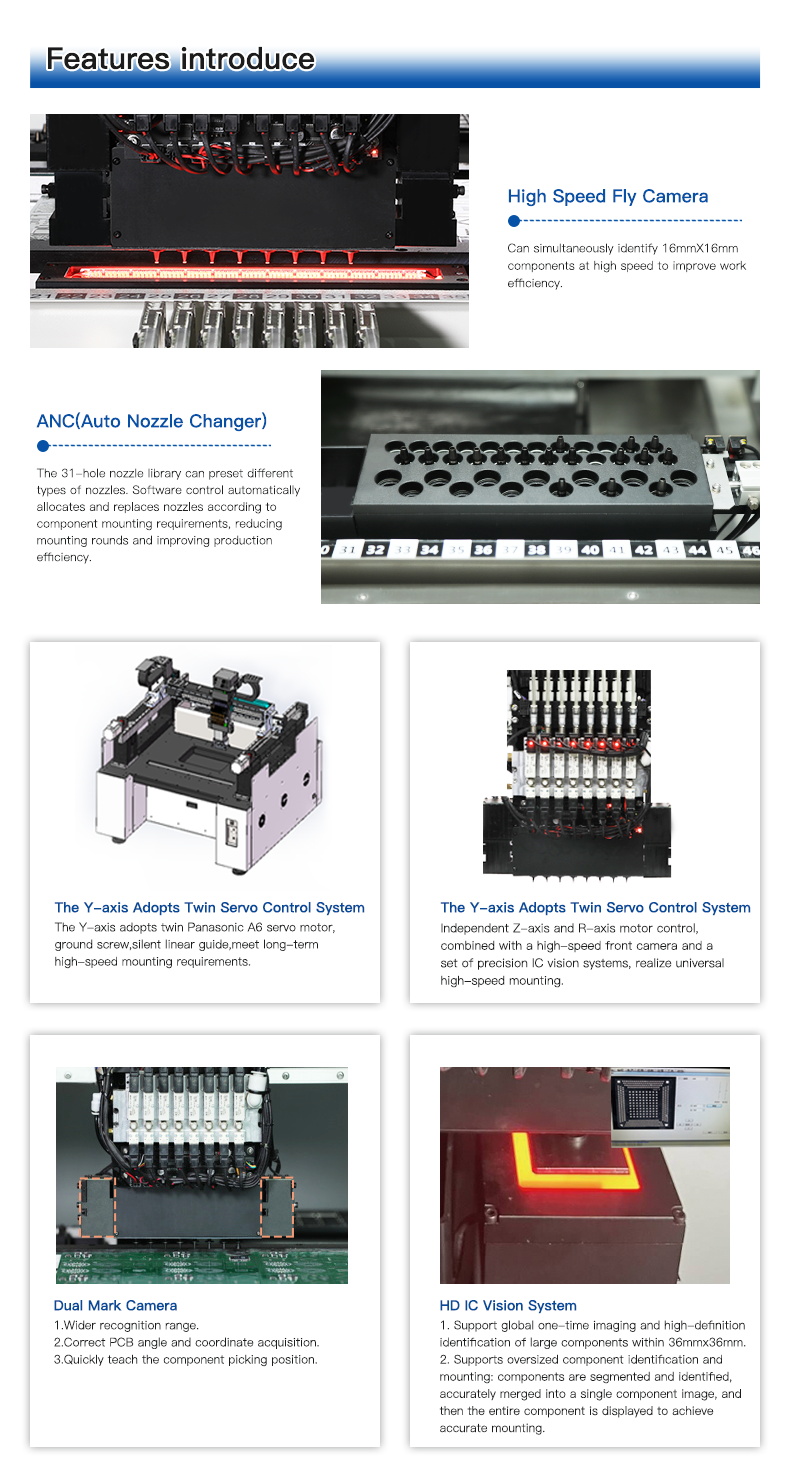

| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting ground screw and mute linear guide (Y axis with double screws) |

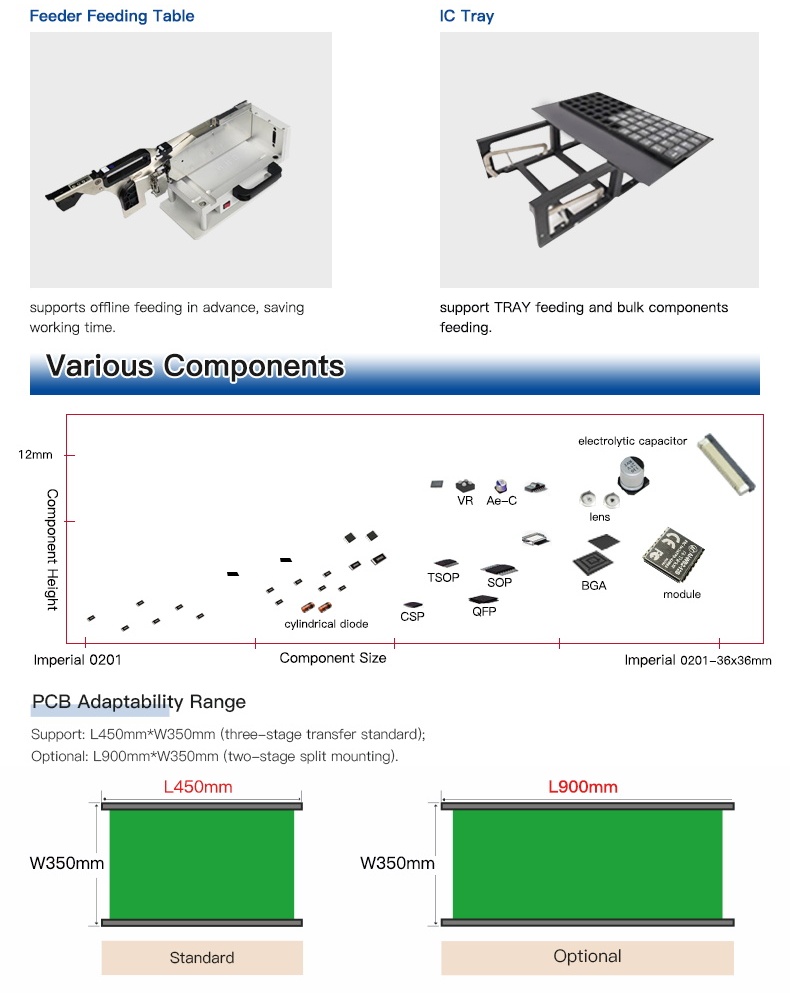

| Feeding System | 80 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×8 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Features:
- Product Name: SMT Pick And Place Machine
- PCB Conveying: 3-section-rail Automatic Conveying, PCB Support Device
- Power Supply: AC220V
- Nozzle Change: Automatic Nozzle Change (31-hole Nozzle Library)
- Mounting Head Quantity: 8
- Feeding System: 80 NXT 8mm Standard Feeder Stacks
Introducing the Printed Circuit Board Placement Machine, also known as the SMT Pick and Place Machine. This machine has a 3-section-rail Automatic Conveying system with a PCB Support Device, making it easy to handle and work with. It has an Automatic Nozzle Change feature with a 31-hole Nozzle Library, which allows for quick and efficient changes. With 8 Mounting Head Quantity and 80 NXT 8mm Standard Feeder Stacks, this machine is perfect for any circuit board assembly needs.
Support and Services:
The SMT Pick and Place Machine product technical support and services include:
- Installation and setup guidance
- Troubleshooting and repair assistance
- Regular maintenance recommendations
- Software updates and upgrades
- Training resources for operators and technicians
- Technical documentation and user manuals
- Spare parts ordering and replacement
